Delaware Road Bridge
NBI Information
Location
State: Pennsylvania
County: Bucks County
Feature Carried: Delaware Road
Feature Crossed: Pennsylvania Canal and Delaware Canal Trail
Latitude, Longitude: 40.5946,-75.1928
Toll: On free road
Maintenance Responsibility: State Highway Agency
Structure Open, Posted, or Closed to Traffic: Open, no restriction
History
Year Built: 2014
Historical Significance: Bridge is not eligible for the National Register of Historic Places.
Year Reconstructed: None
Picture Date: April 18, 2026
Geometry
Lanes on Structure: 2
Lanes under Structure: 0
Skew: 3 degrees
Number of Main Spans: 1
Main Structure Type: Box Beam or Girders - Multiple
Main Structure Material: Prestressed Concrete
Number of Approach Spans: 0
Approach Structure Type: None
Approach Structure Material: None
Condition
Inspection Date: October 2022
Deck Condition: Very Good
Superstructure Condition: Very Good
Substructure Condition: Very Good
Channel Condition: Fair
Culvert: Not Applicable
NBI Year: 2025
Bridge Information

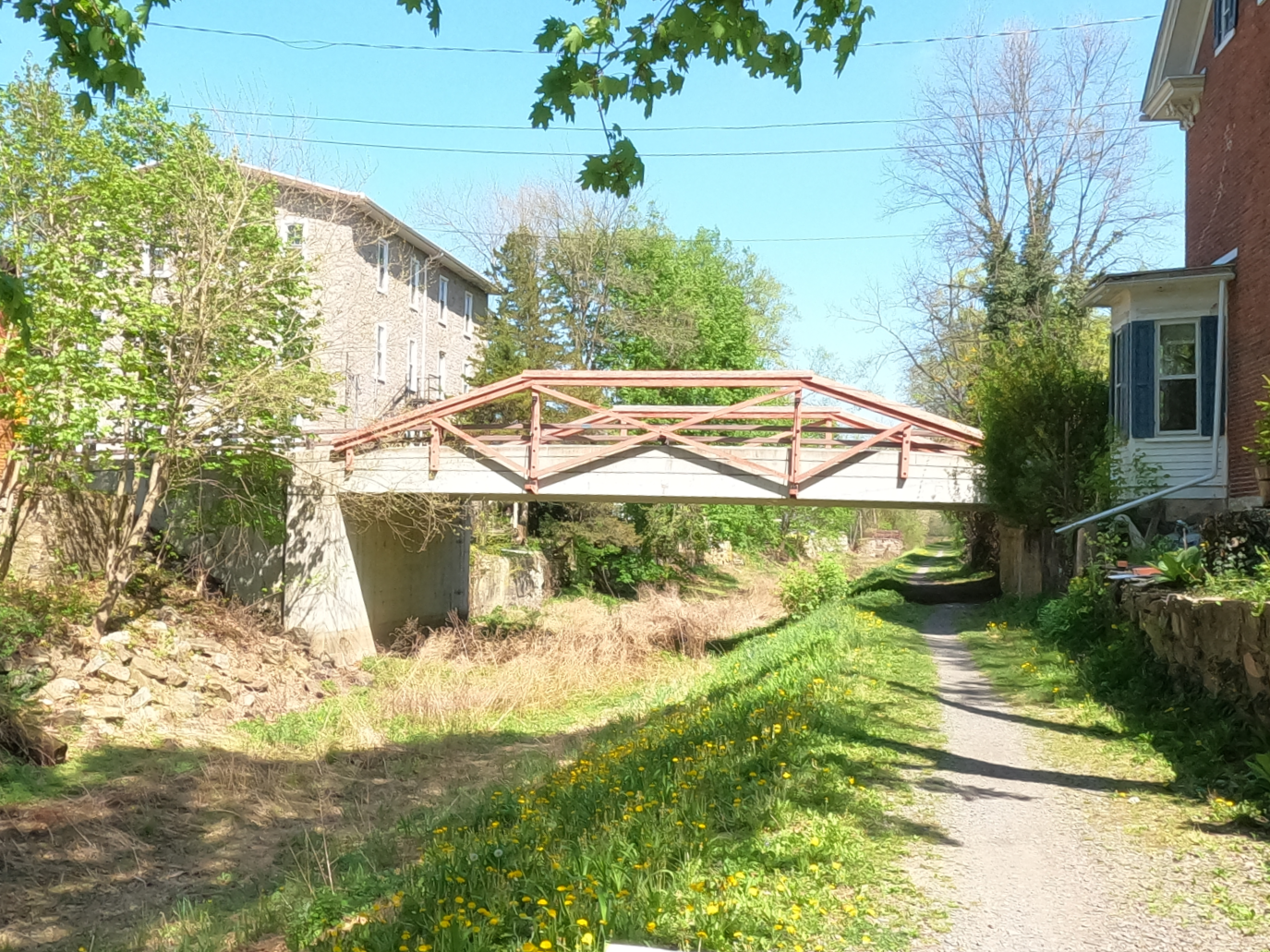

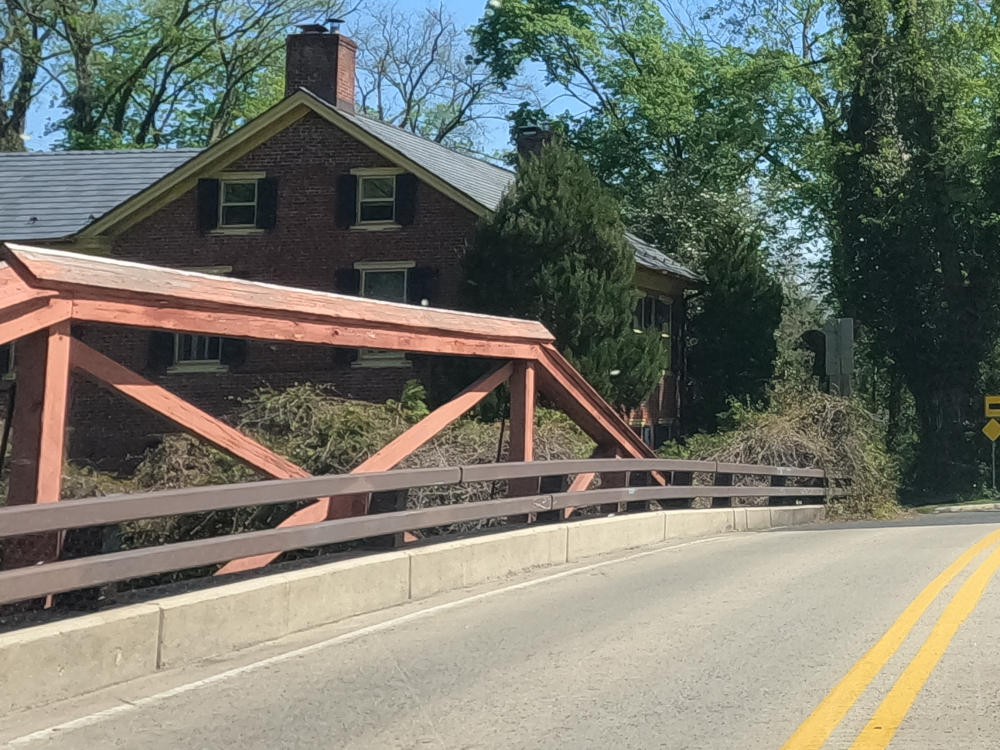

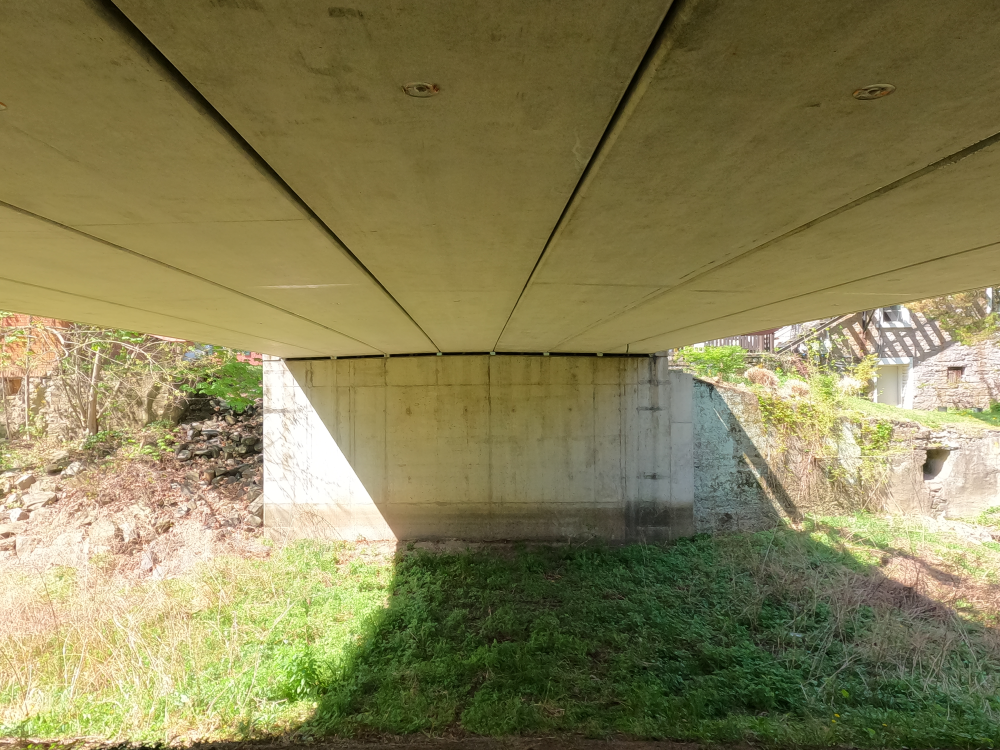

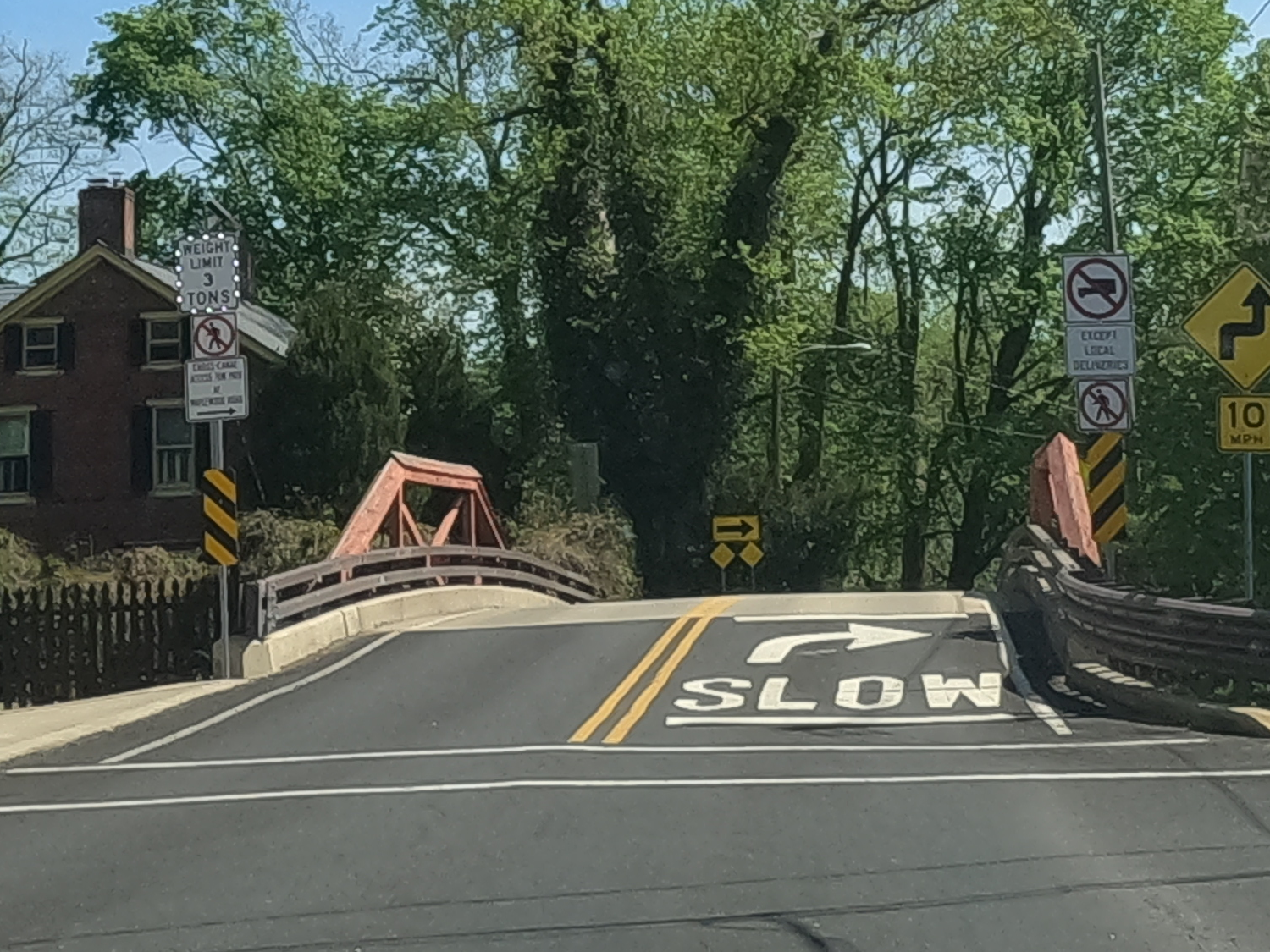

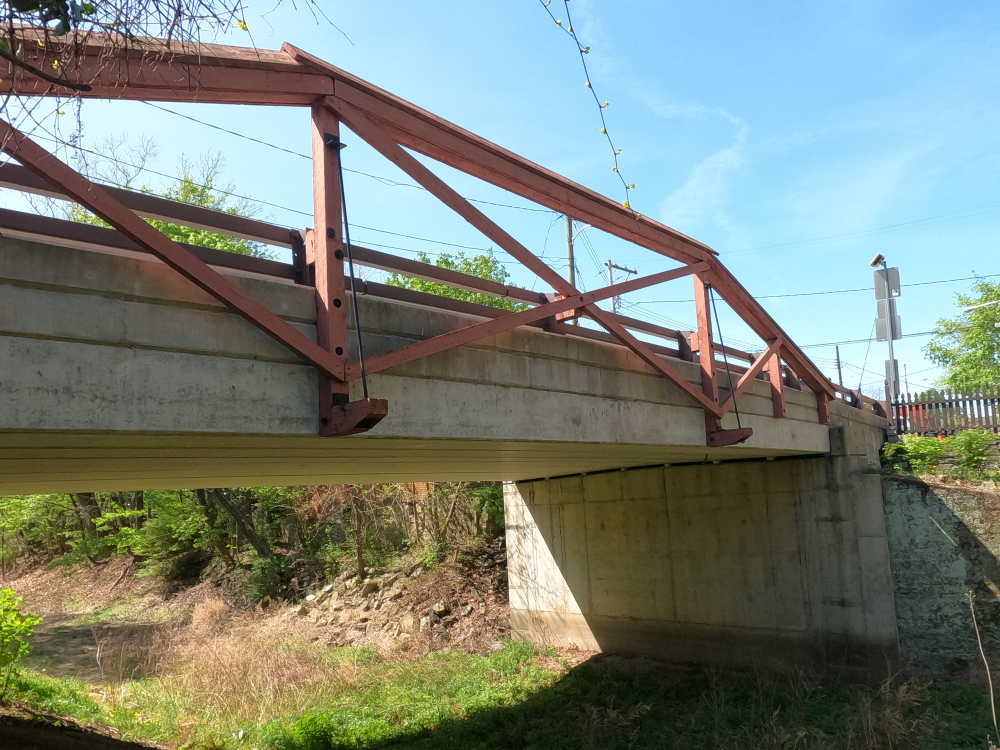

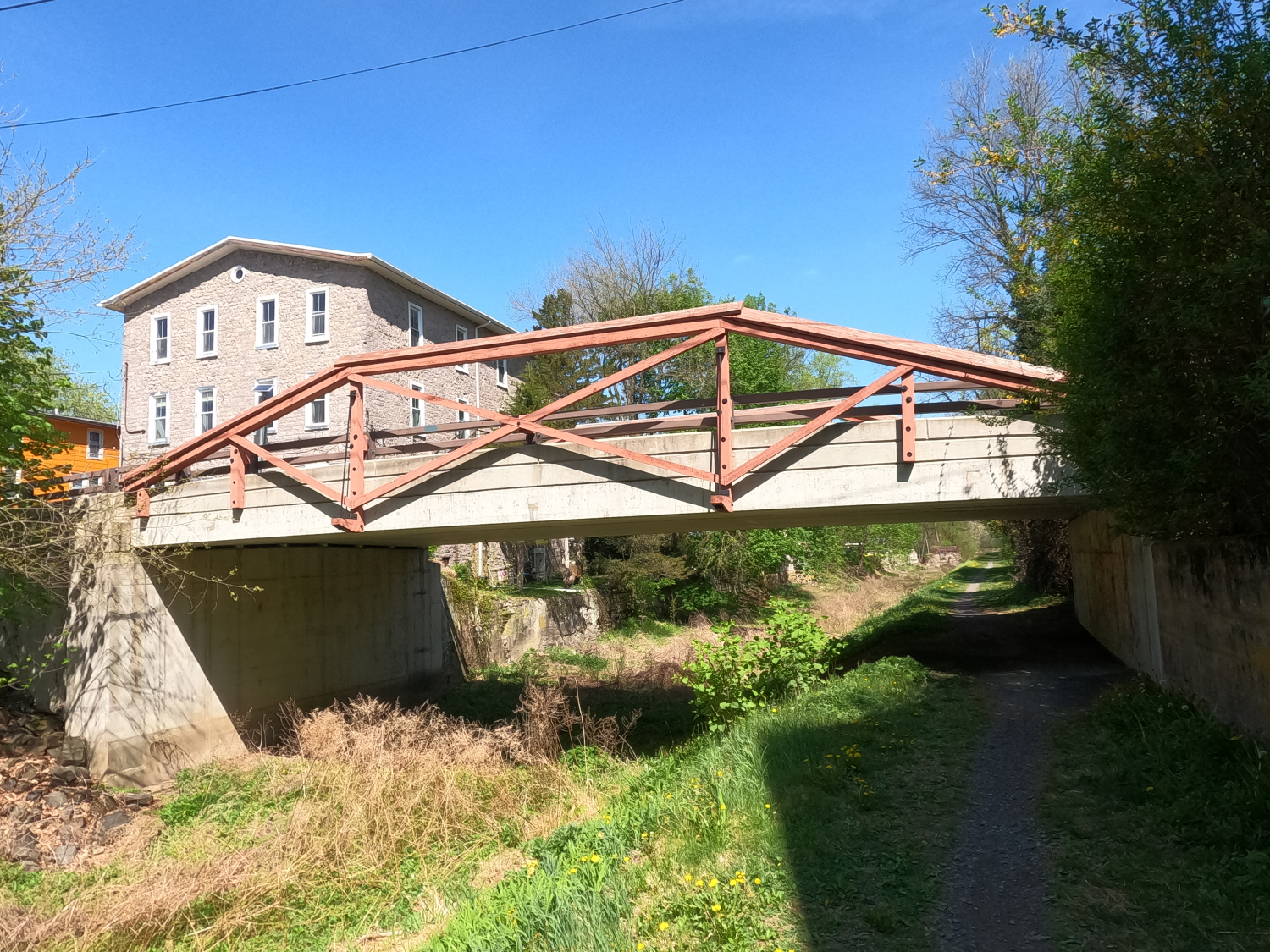

The bridge was built in 2014 and was designed to match many of the other bridges across the Pennsylvania Canal and Delaware Canal Trail (such as the Bridgeton Hill Road Bridge). It is a prestressed concrete bridge utilizing adjacent box beams, with decorative wooden trusses attached to the bridge fascia.
The previous bridge at this site was a thru girder bridge that was built in 1920.
References
None
