Lancaster Mennonite School Bridge
NBI Information
Location
State: Pennsylvania
County: Lancaster County
Feature Carried: Mennonite School Road
Feature Crossed: Mill Creek
Latitude, Longitude: 41.2396, -77.3334

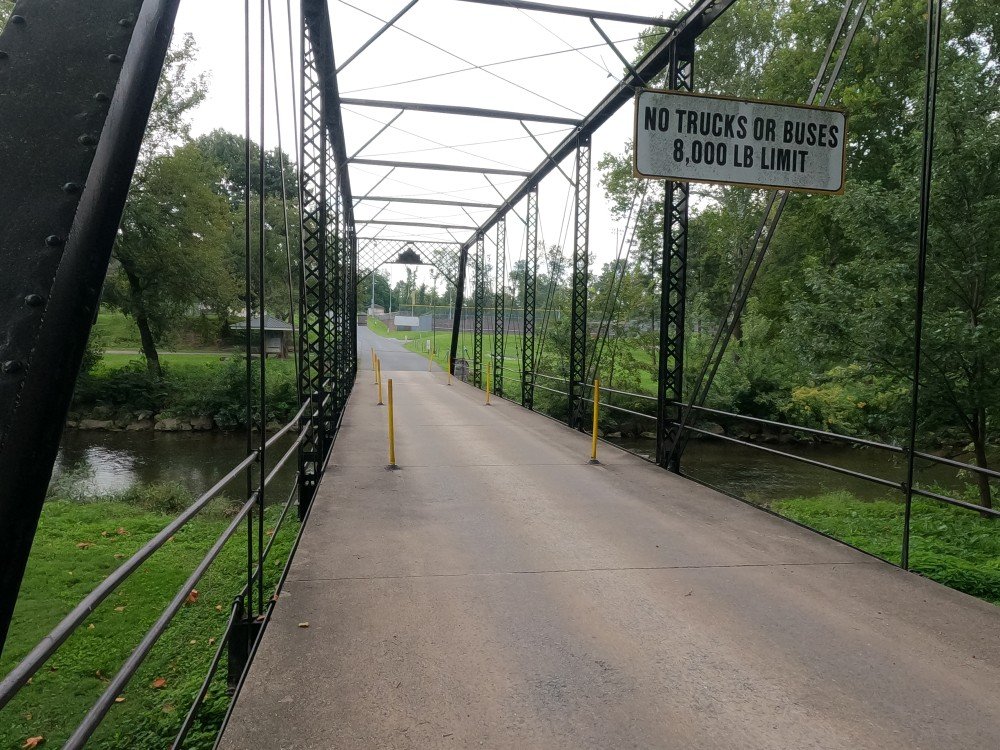

Structure Open, Posted, or Closed to Traffic: Private Road, Posted for Load
History

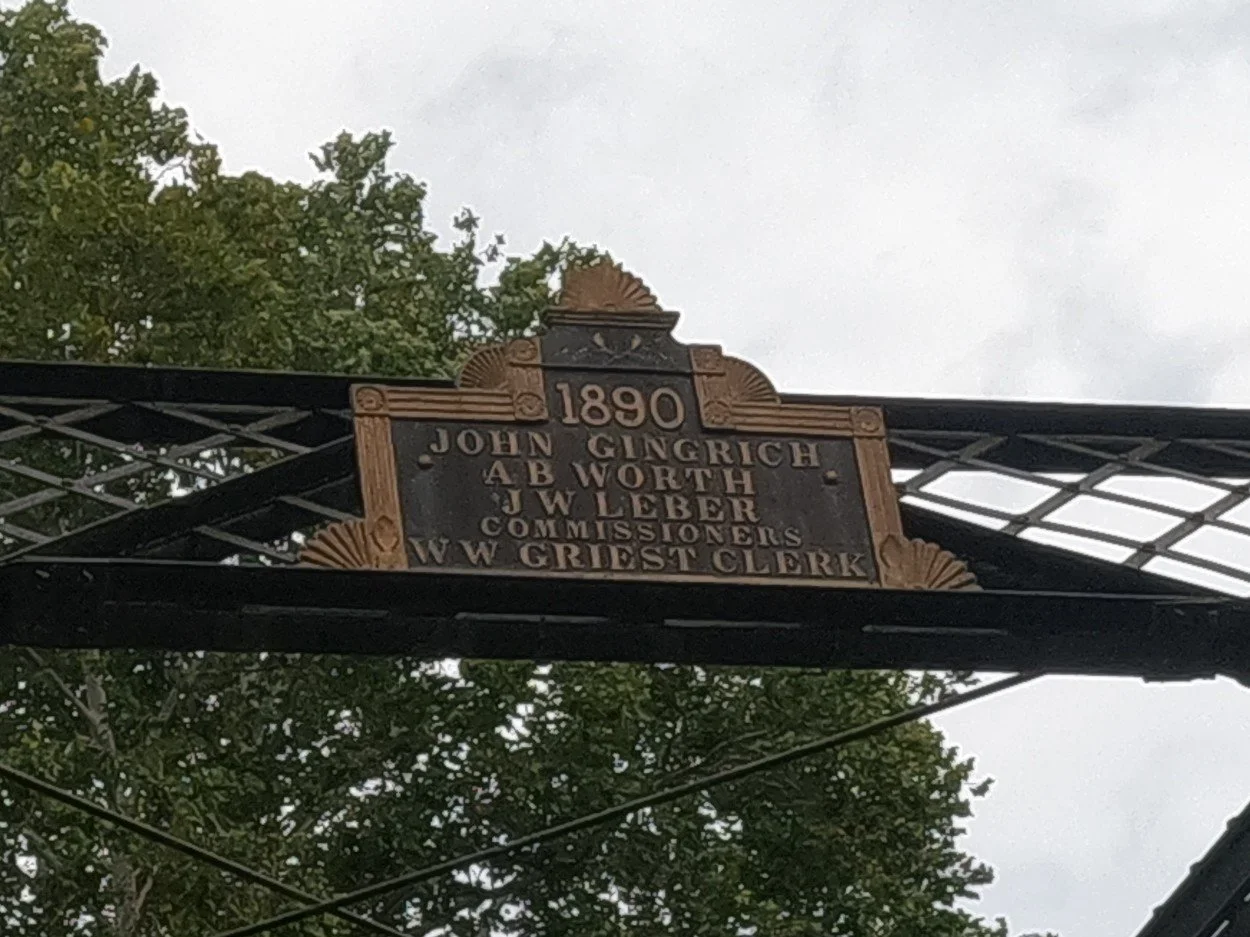

Year Built: 1890
Picture Date: September 12, 2026
Geometry
Lanes on Structure: 1
Lanes under Structure: 0
Number of Main Spans: 1
Main Structure Type: Thru Truss
Main Structure Material: Metal
Condition
Bridge is not on the National Bridge Inventory
Bridge Information

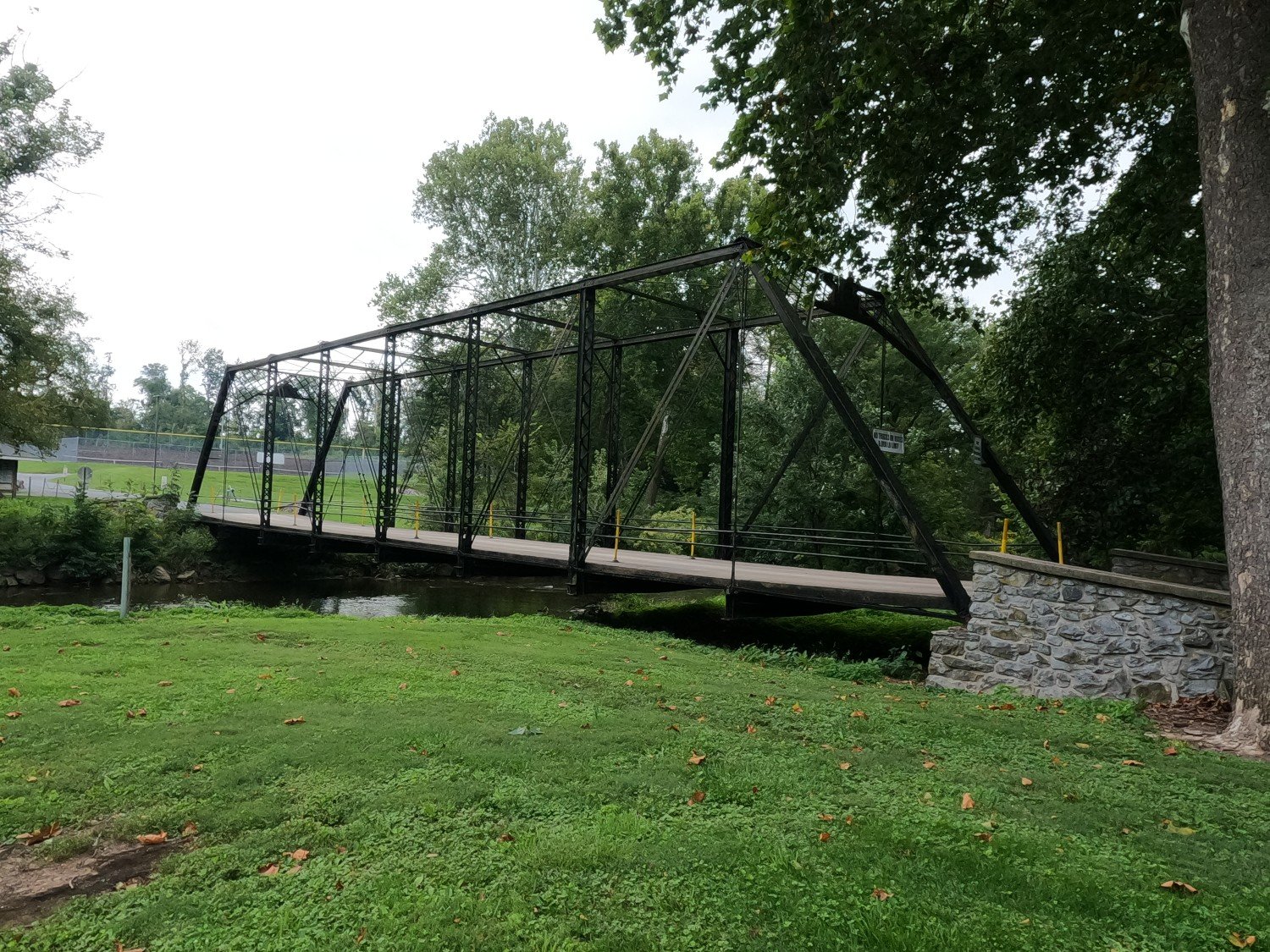

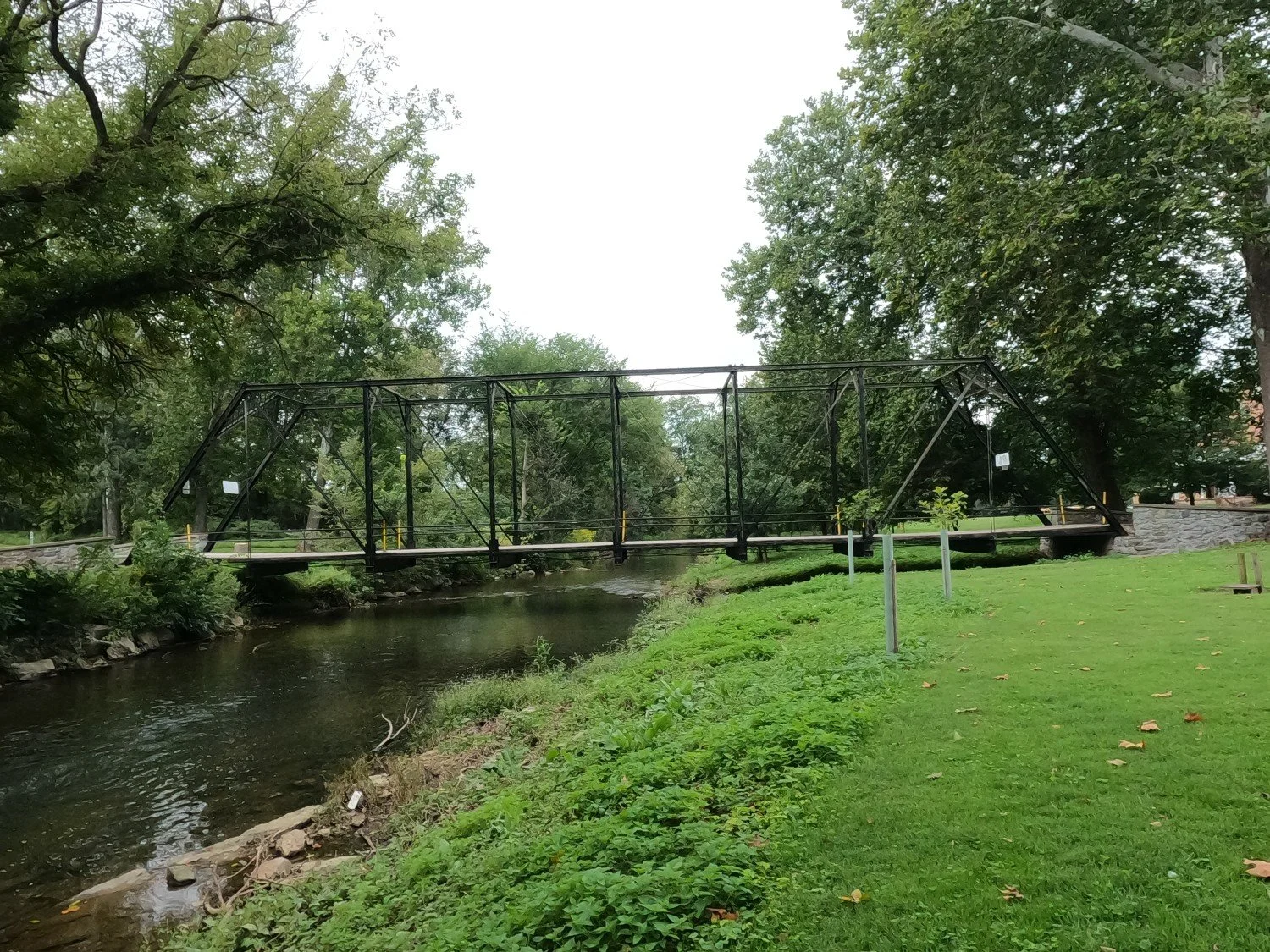

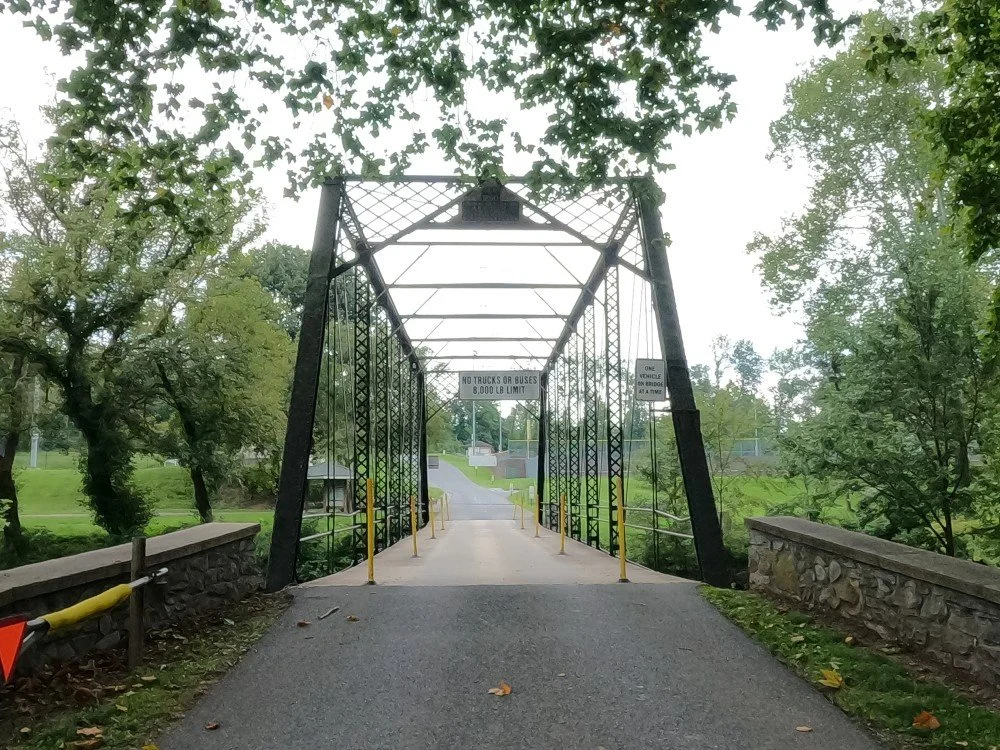

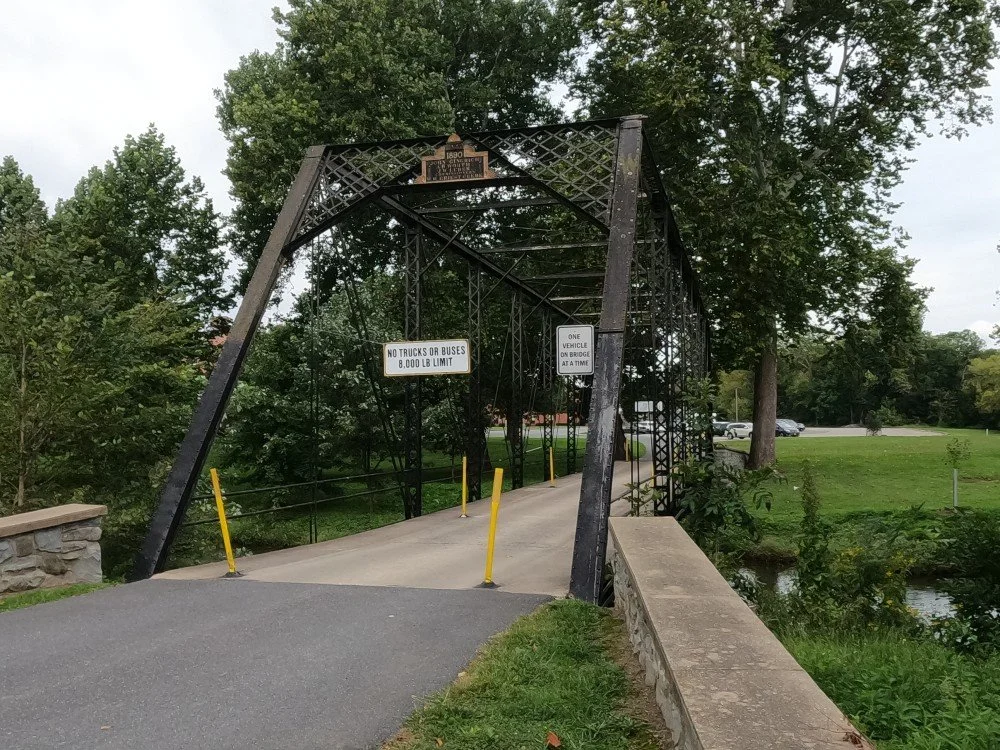

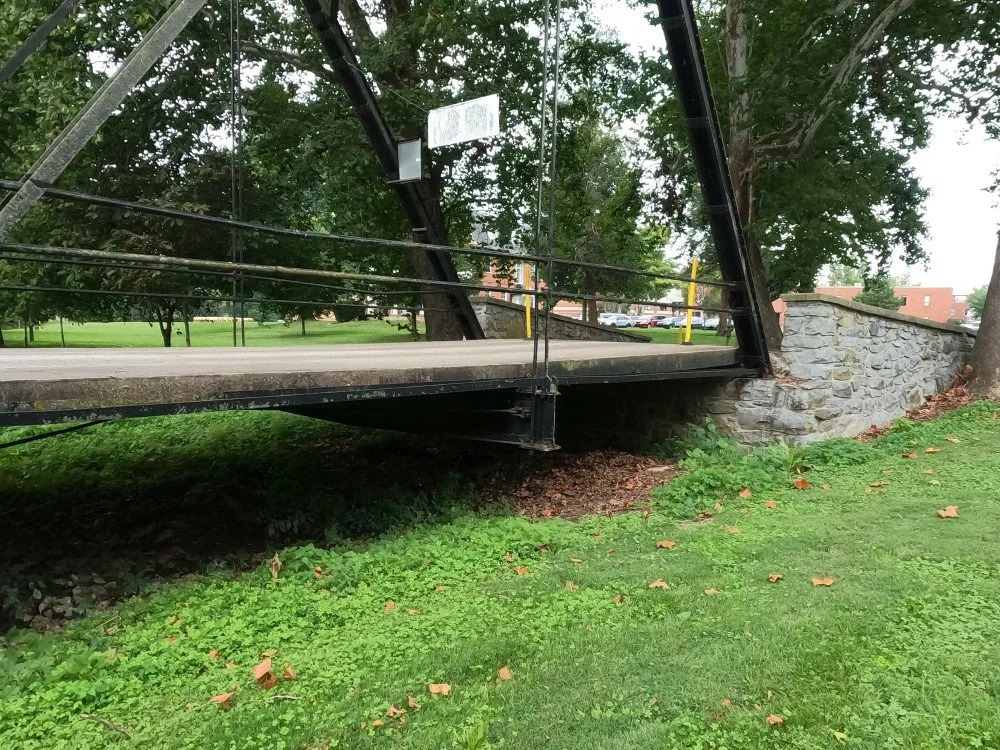

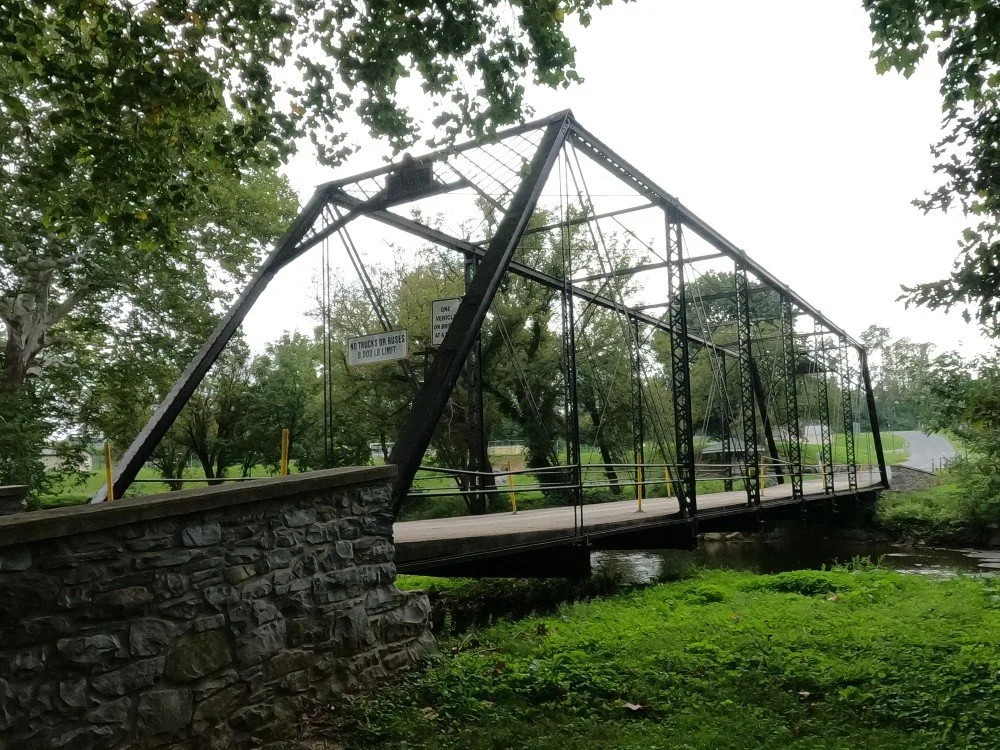

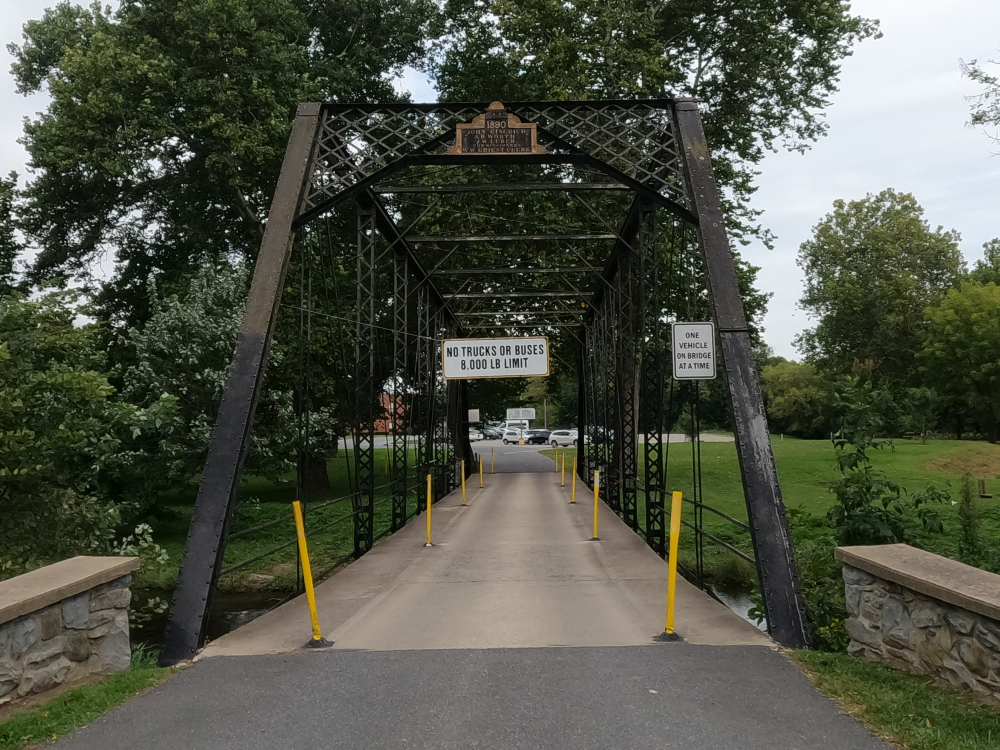

The Lancaster Mennonite School Bridge is a Pratt through truss bridge on a private road in the Lancaster Mennonite School campus. It was built in 1890 and is an extremely rare example of a bridge with almost no alteration. Because this bridge is on a private road, upgraded safety features, such as modern guiderail, are not required.

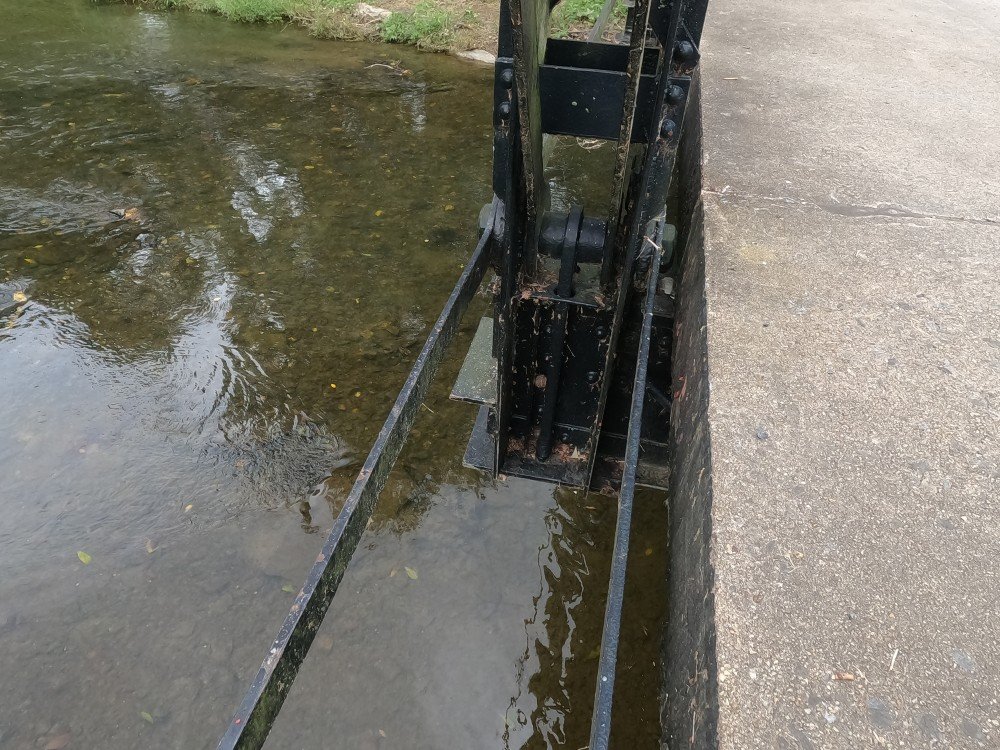

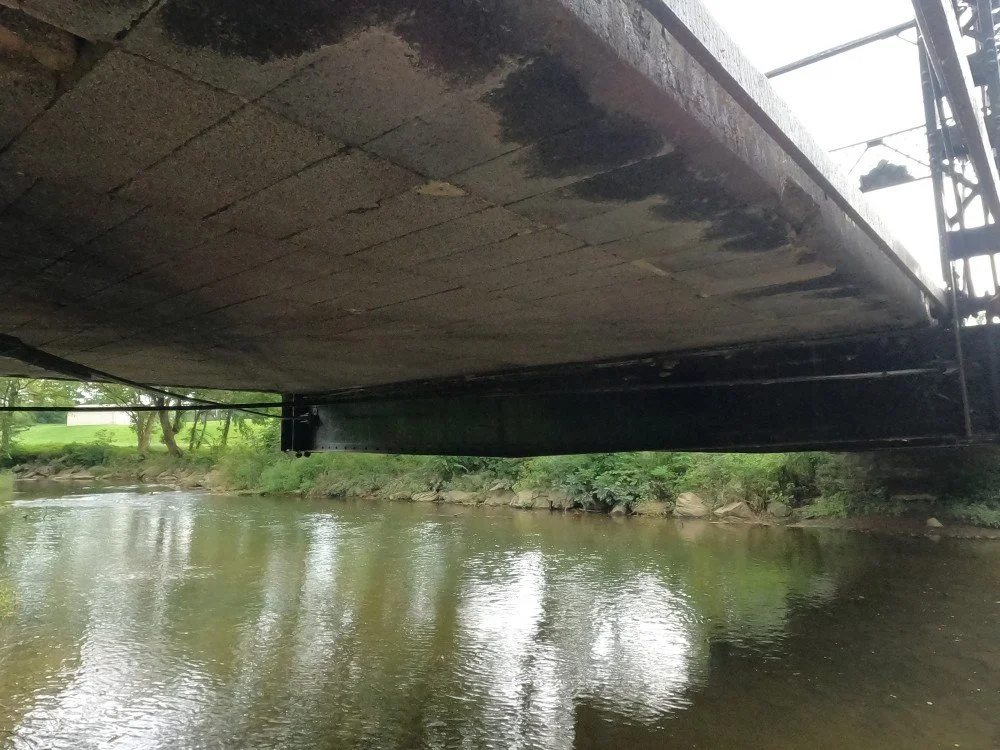

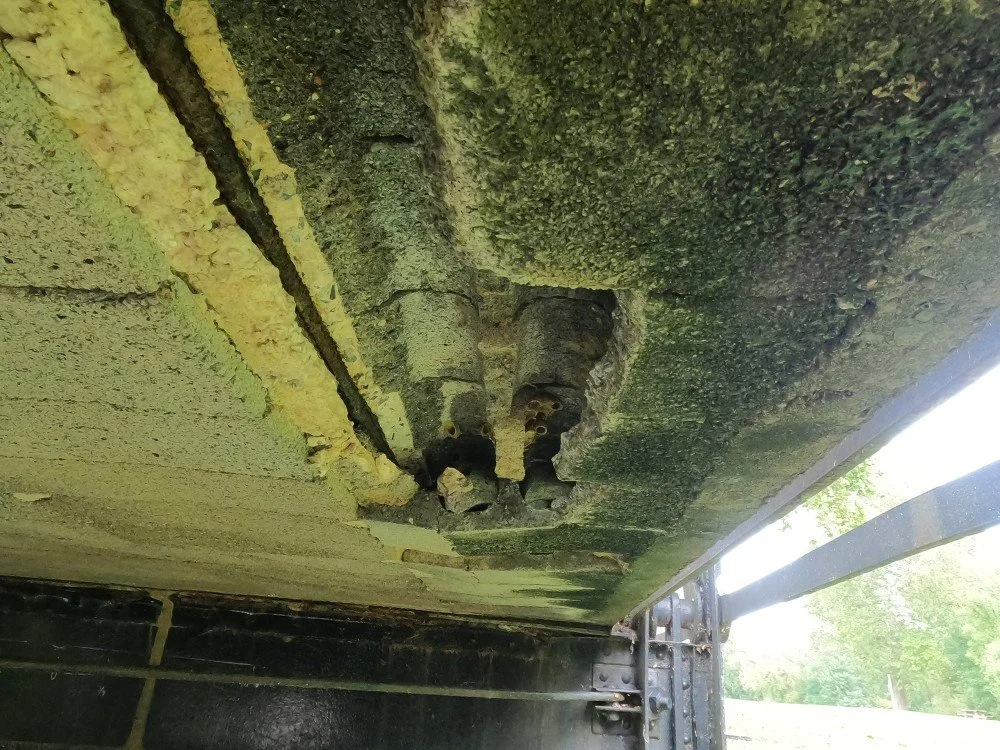

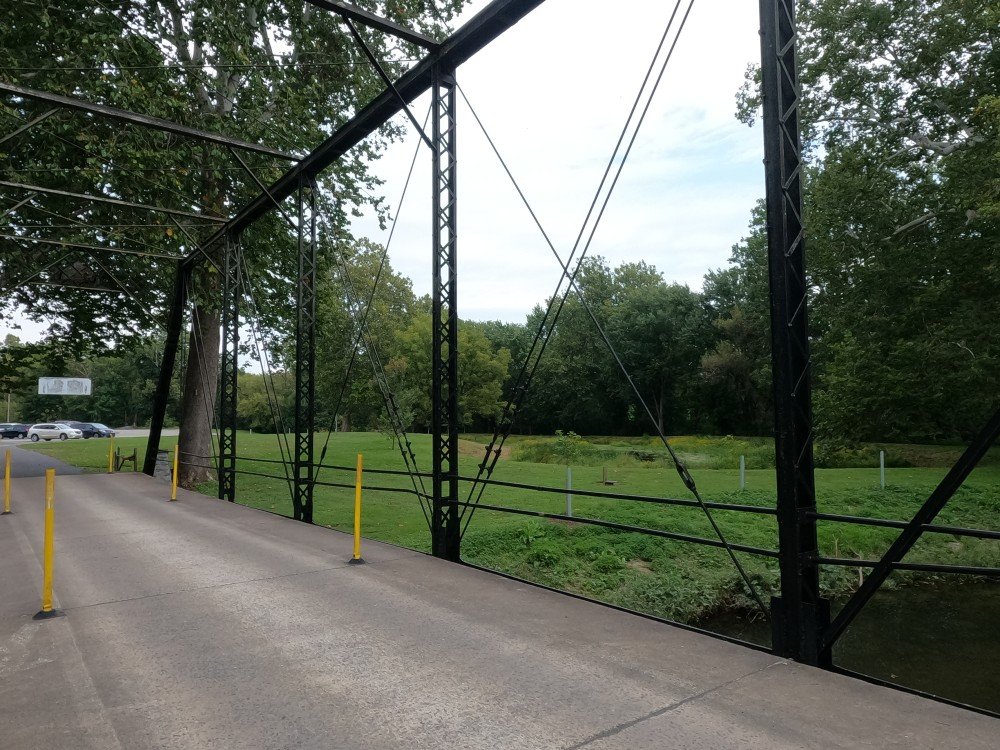

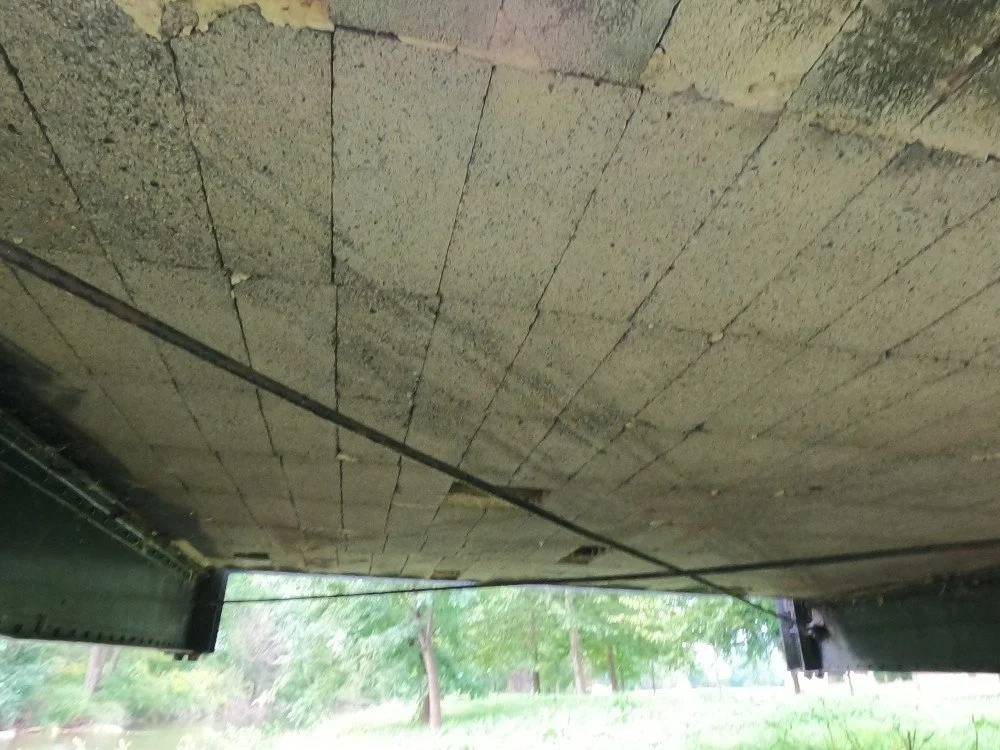

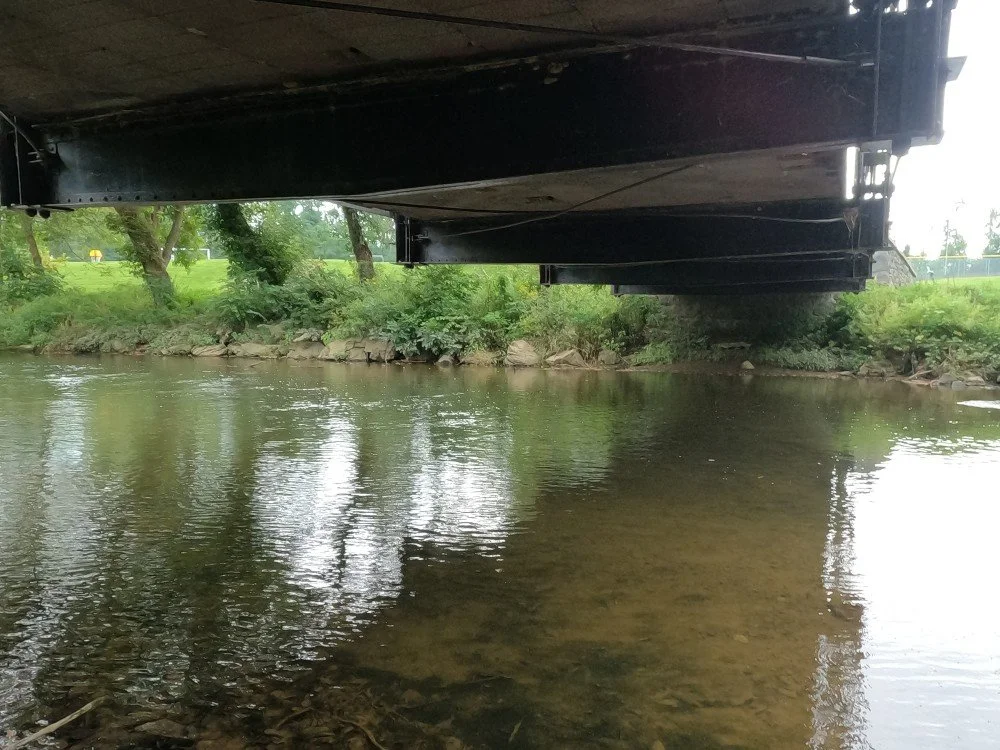

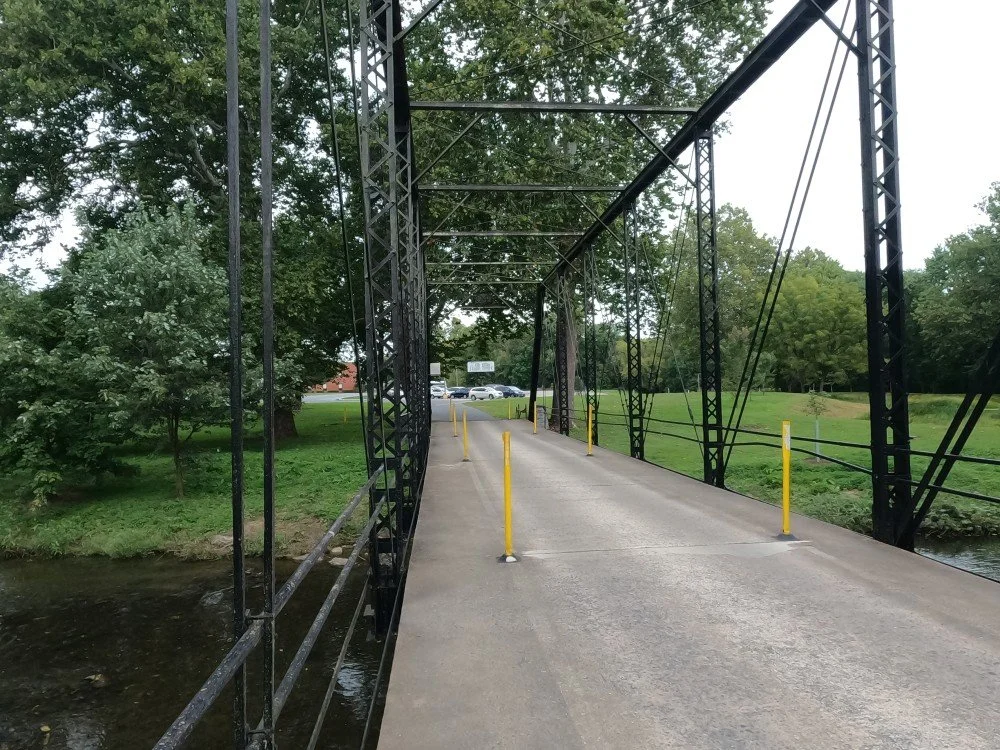

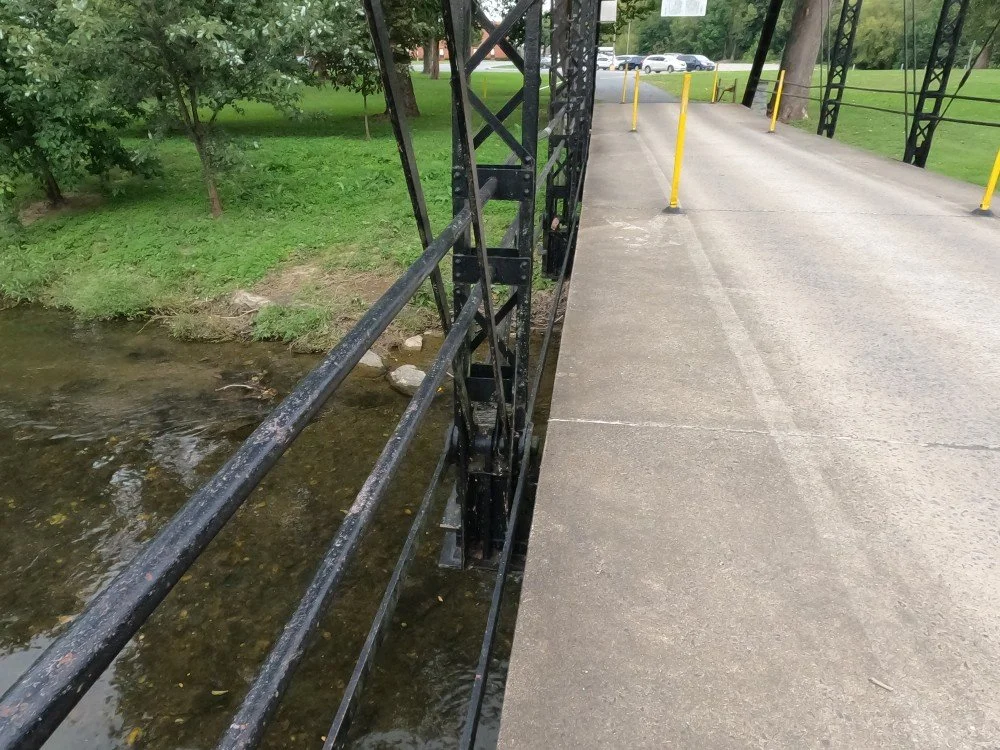

The bridge has detailed latticed steelwork, including top chords with no cover plate, vertical struts and portal bracing. It also displays built-up fishbelly floor beams, and gas pipe railings. The deck appears to be constructed from post-tensioned cinderblocks with an asphalt overlay.
References
Holth, Nathan. “Lancaster Mennonite School Bridge.” Historic Bridges, 31 Aug. 2019, https://historicbridges.org/bridges/browser/?bridgebrowser=pennsylvania/mennoniteschoolbridge/. Accessed 24 Sept. 2026.
