Bill Benedict Bridge
NBI Information
Location
State: Florida
County: Seminole County
Feature Carried: US-17-92
Feature Crossed: St. Johns River
Latitude, Longitude: 28.8375,-81.3243
Toll: On free road
Maintenance Responsibility: State Highway Agency
Structure Open, Posted, or Closed to Traffic: Open, no restriction
History
Year Built: 1994
Historical Significance: Bridge is not eligible for the National Register of Historic Places.
Year Reconstructed: None
Picture Date: May 13, 2026
Geometry
Lanes on Structure: 4
Lanes under Structure: 0
Skew: 0 degrees
Number of Main Spans: 13
Main Structure Type: Stringer/Multi-beam or Girder
Main Structure Material: Prestressed Concrete Continuous
Number of Approach Spans: None
Approach Structure Type: None
Approach Structure Material: None
Condition
Inspection Date: July 2024
Deck Condition: Good
Superstructure Condition: Good
Substructure Condition: Good
Channel Condition: Good
Culvert: Not Applicable
NBI Year: 2025
Bridge Information

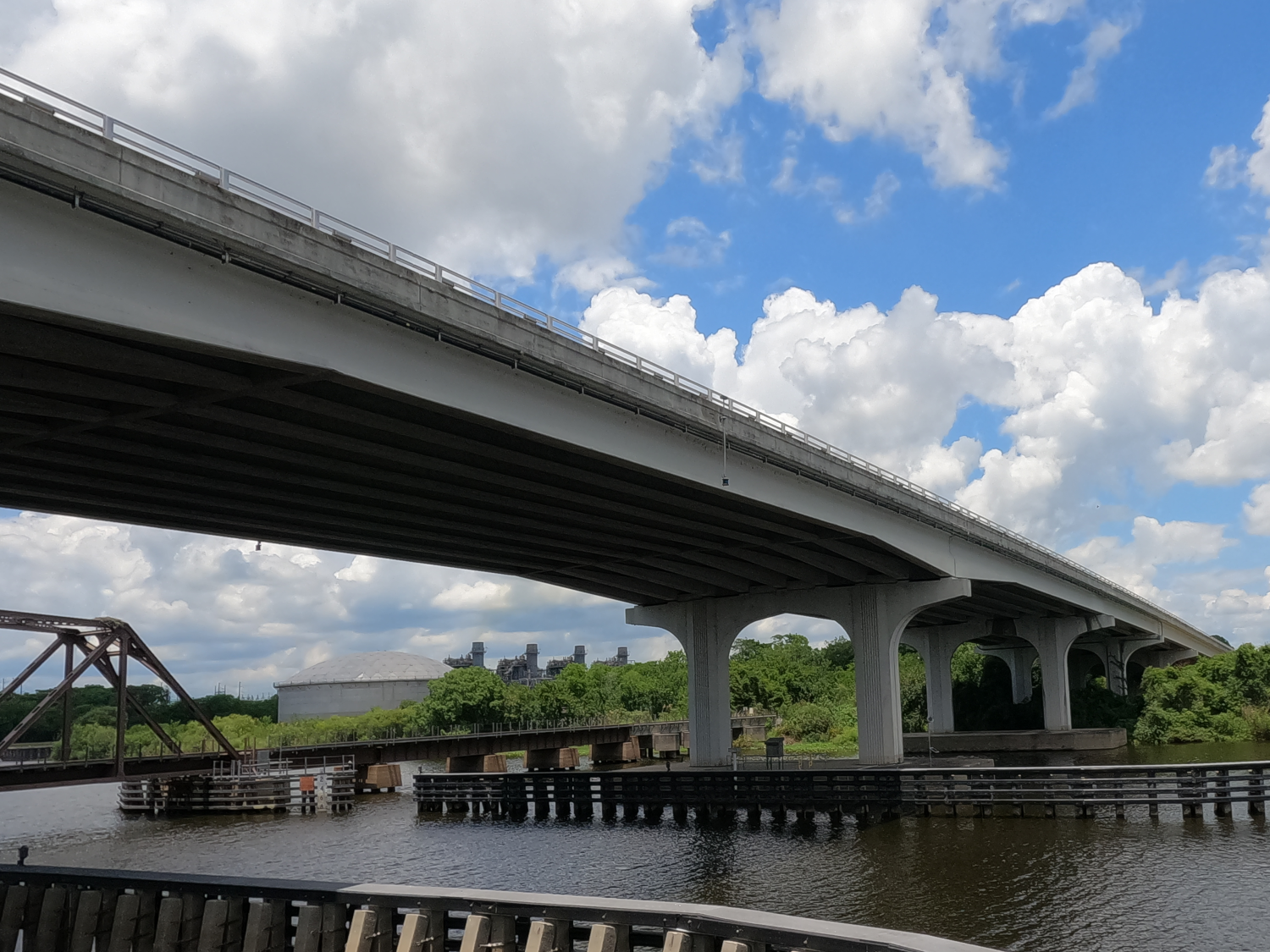

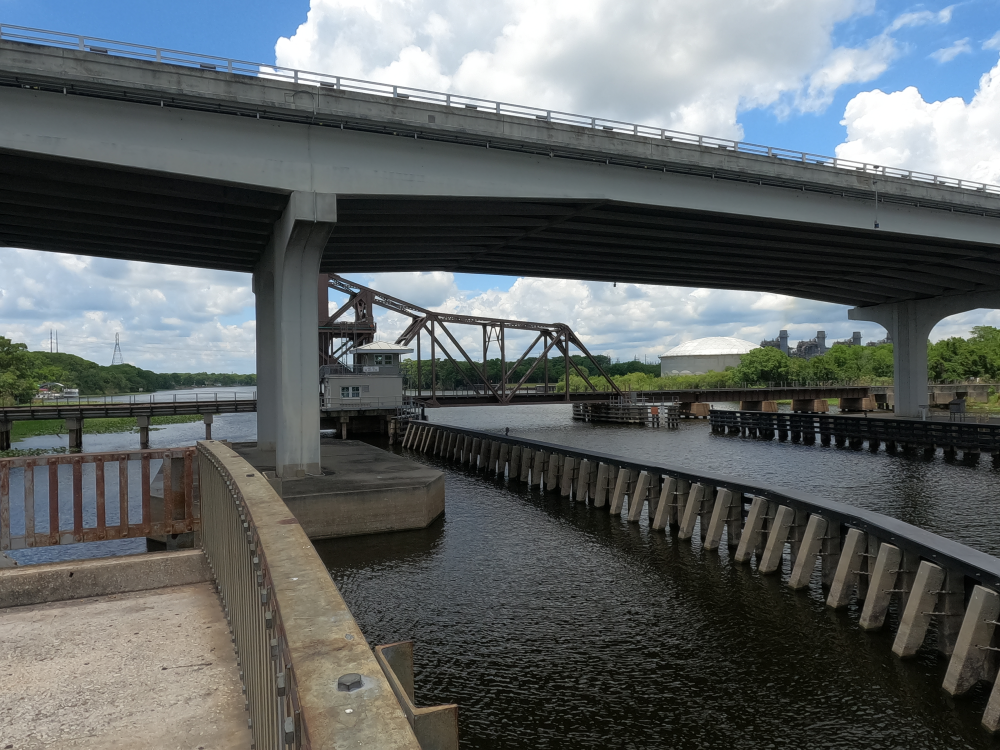

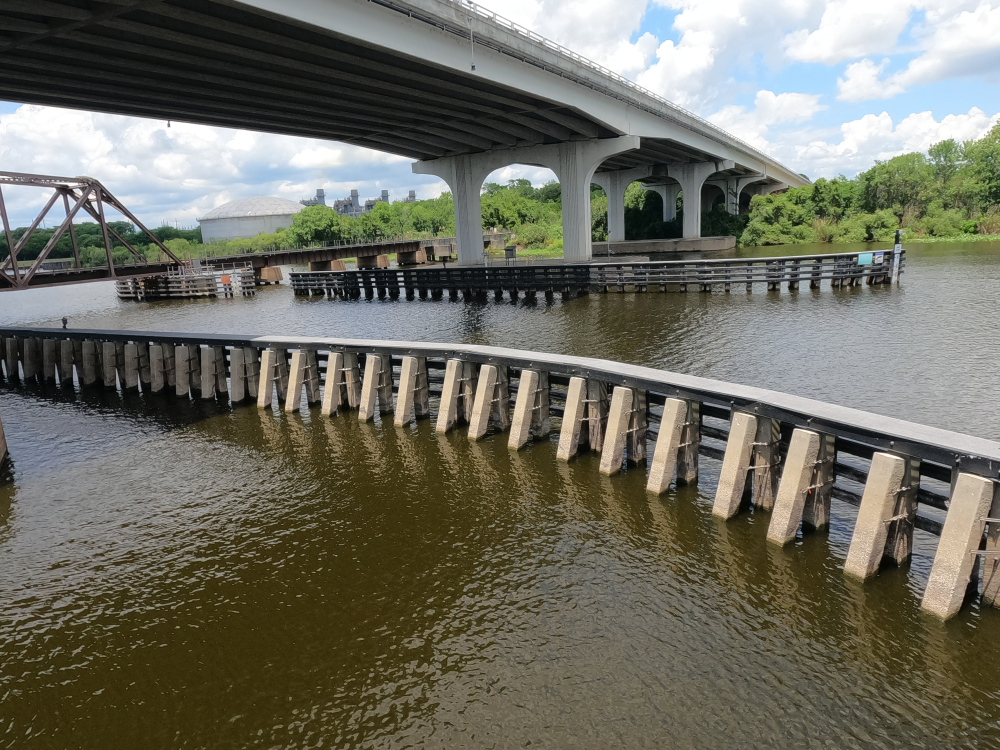

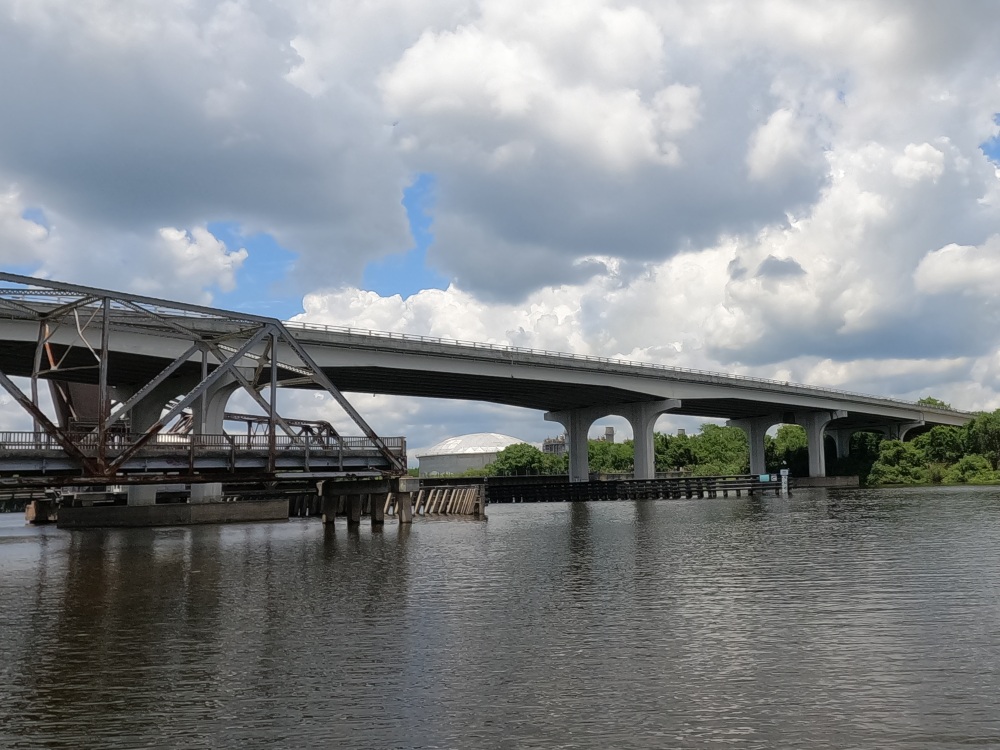

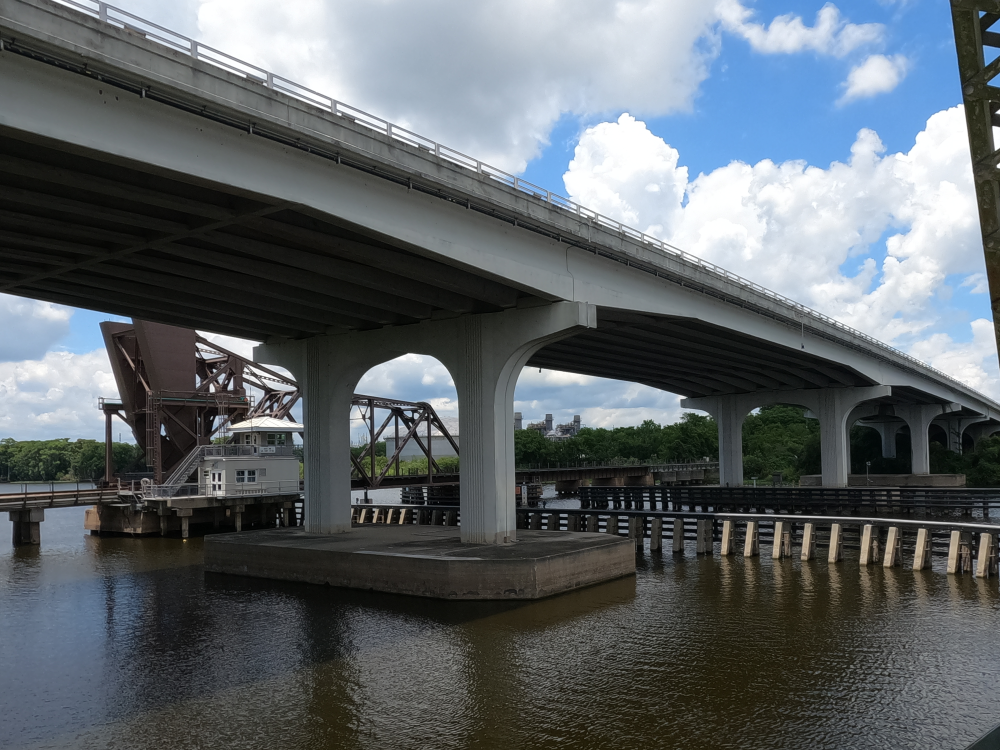

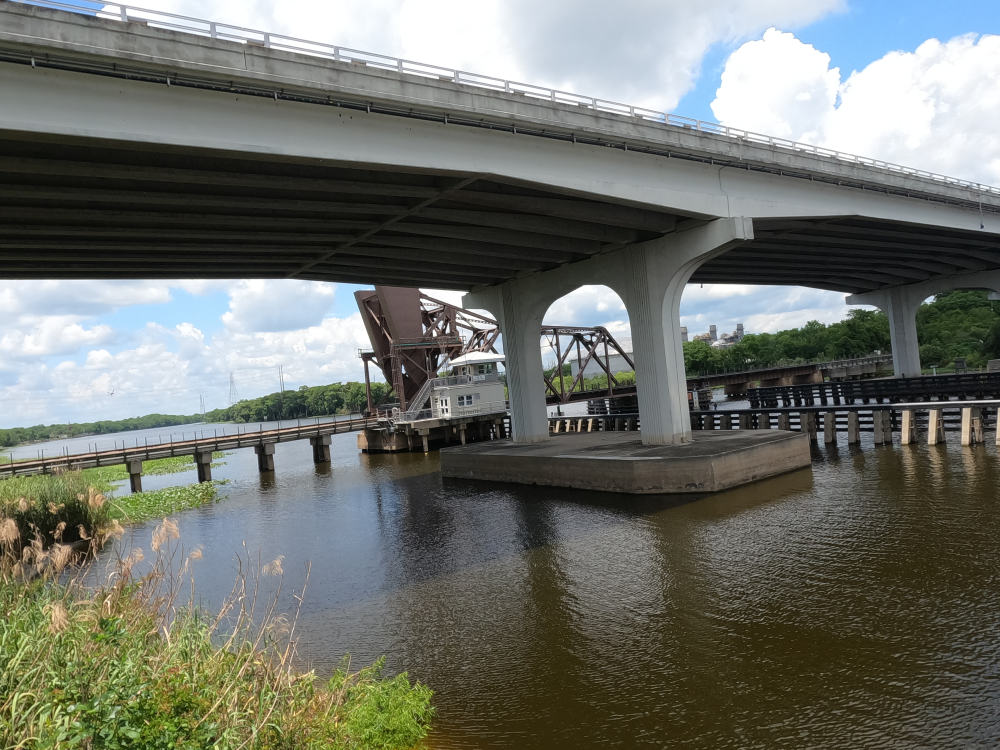

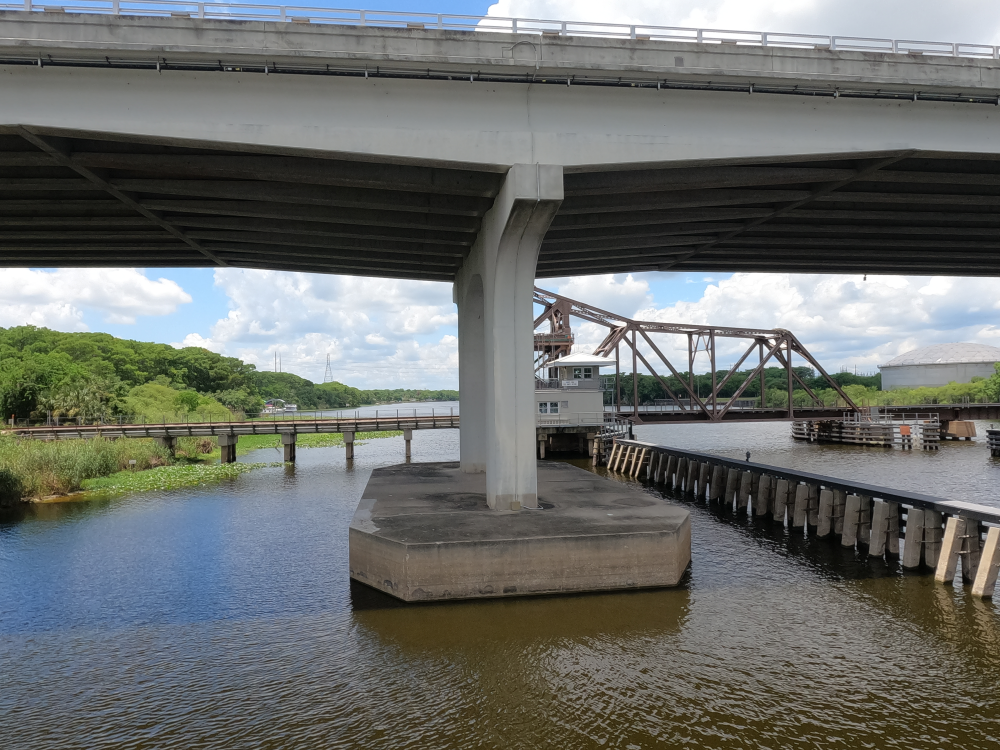

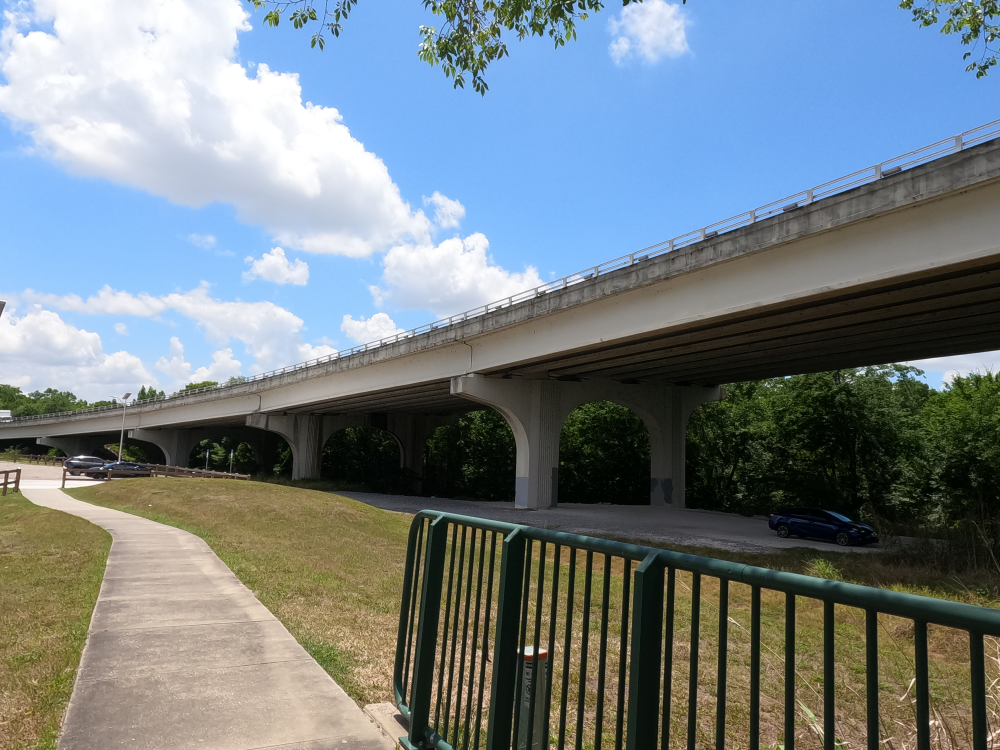

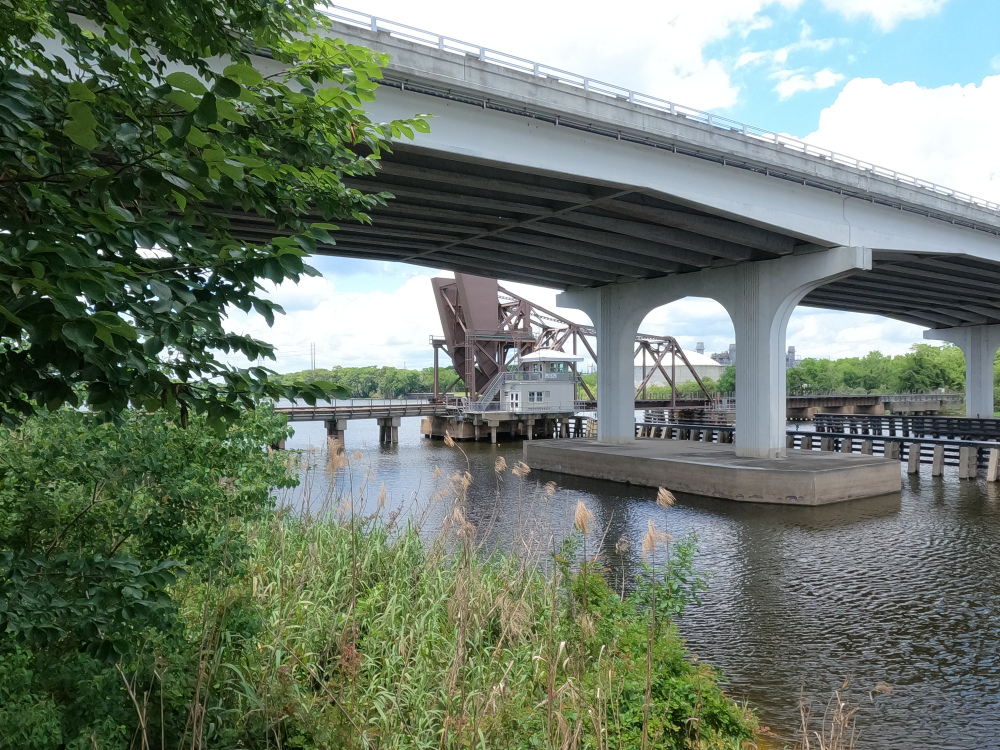

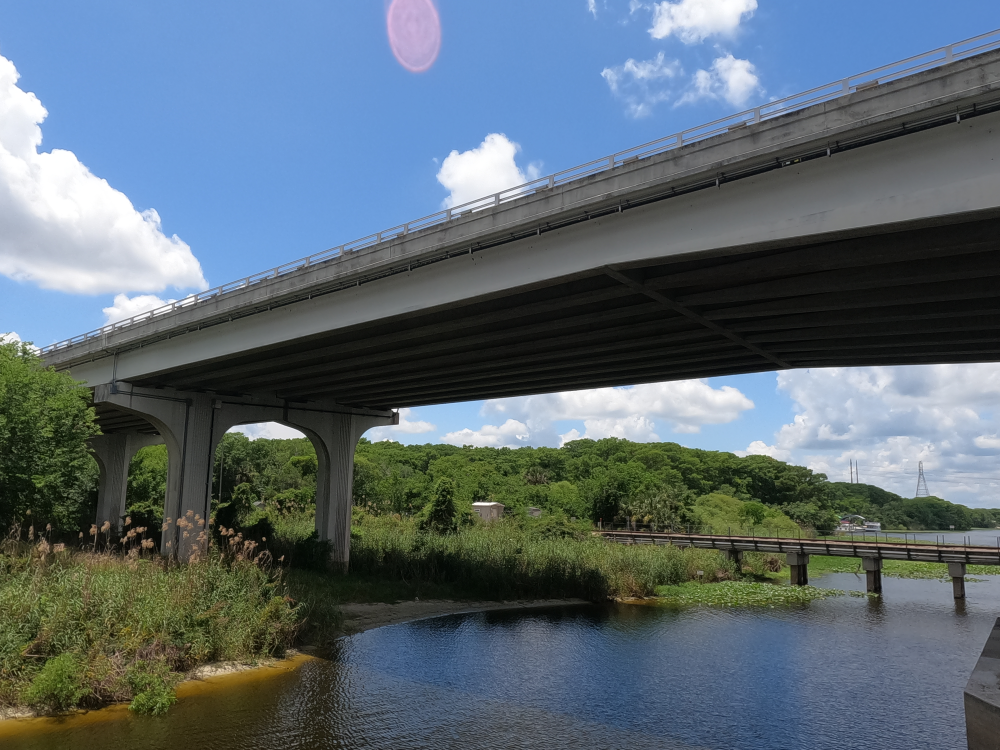

The Bill Benedict Bridge was built in 1994 to replace the Lake Monroe Bridge. The new bridge is a high level prestressed concrete girder bridge which eliminated the need for a movable bridge and increased the roadway from 1 lane to 2 lanes in each direction.
