Currie Parkway Bridge

(Upper Bridge)

Back To Michigan Metal Truss Bridges Page

NBI Information

Location

State: Michigan

County: Midland County

Feature Carried: Currie Parkway

Feature Crossed: Tittabawassee River

Latitude, Longitude: 43.6175,-84.2523

Toll: On free road

Maintenance Responsibility: City or Municipal Highway Agency

Structure Open, Posted, or Closed to Traffic: Posted for load (may include other restrictions such as temporary bridges which are load posted)

History

Year Built: 1900

Historical Significance: Bridge is not eligible for the National Register of Historic Places.

Year Reconstructed: 2023

Picture Date: August 31, 2025

Geometry

Lanes on Structure: 1

Lanes under Structure: 0

Skew: 0 degrees

Number of Main Spans: 1

Main Structure Type: Truss - Thru

Main Structure Material: Steel

Number of Approach Spans: None

Approach Structure Type: None

Approach Structure Material: None

Condition

Inspection Date: July 2023

Deck Condition: Excellent

Superstructure Condition: Fair

Substructure Condition: Fair

Channel Condition: Satisfactory

Culvert: Not Applicable

NBI Year: 2024

Bridge Information

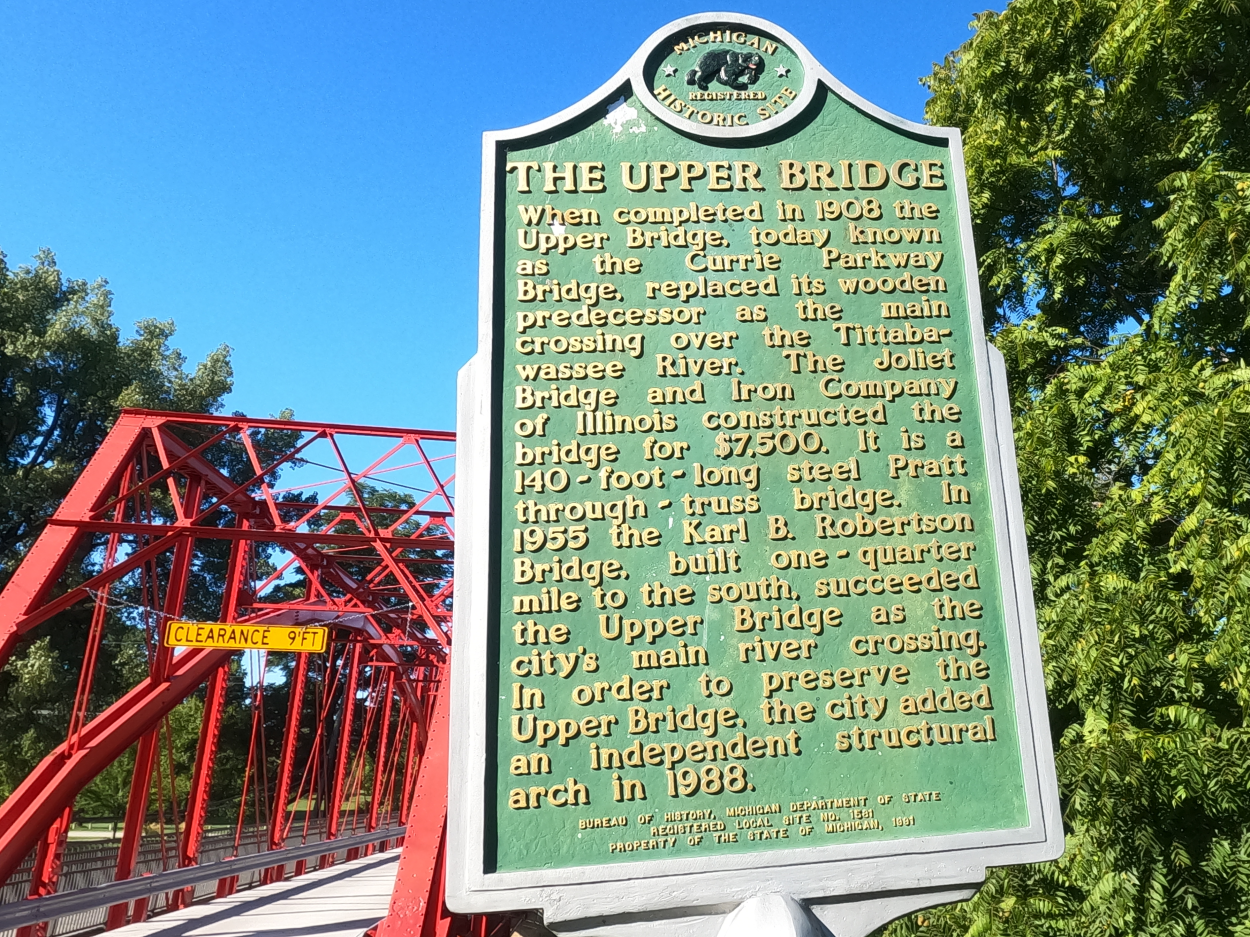

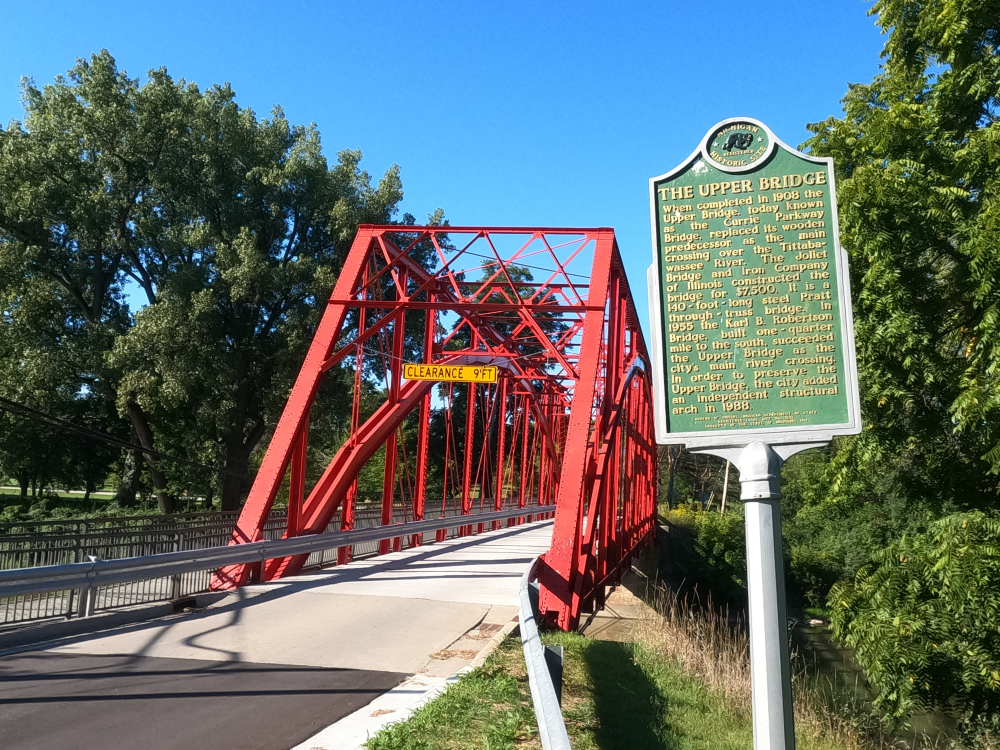

The Currie Parkway Bridge, originally called the Upper Bridge, was built in 1908 after the previous wooden bridge was destroyed in a flood. It was succeeded as the main river crossing by the Karl B. Robertson Bridge in 1955 but continued to operate as a secondary crossing.

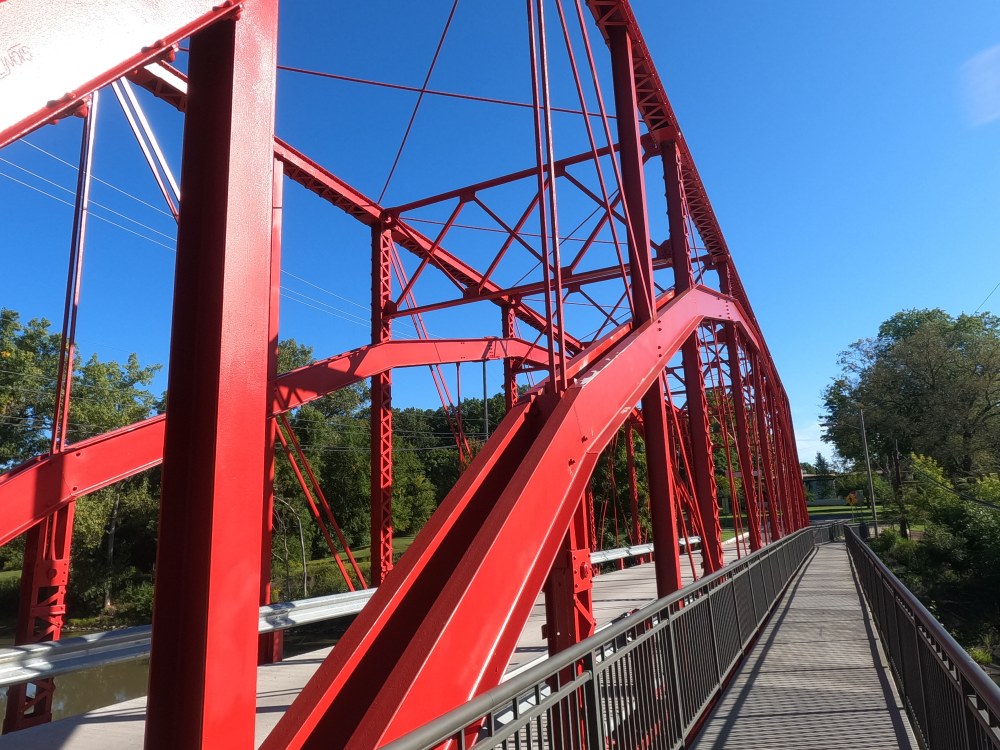

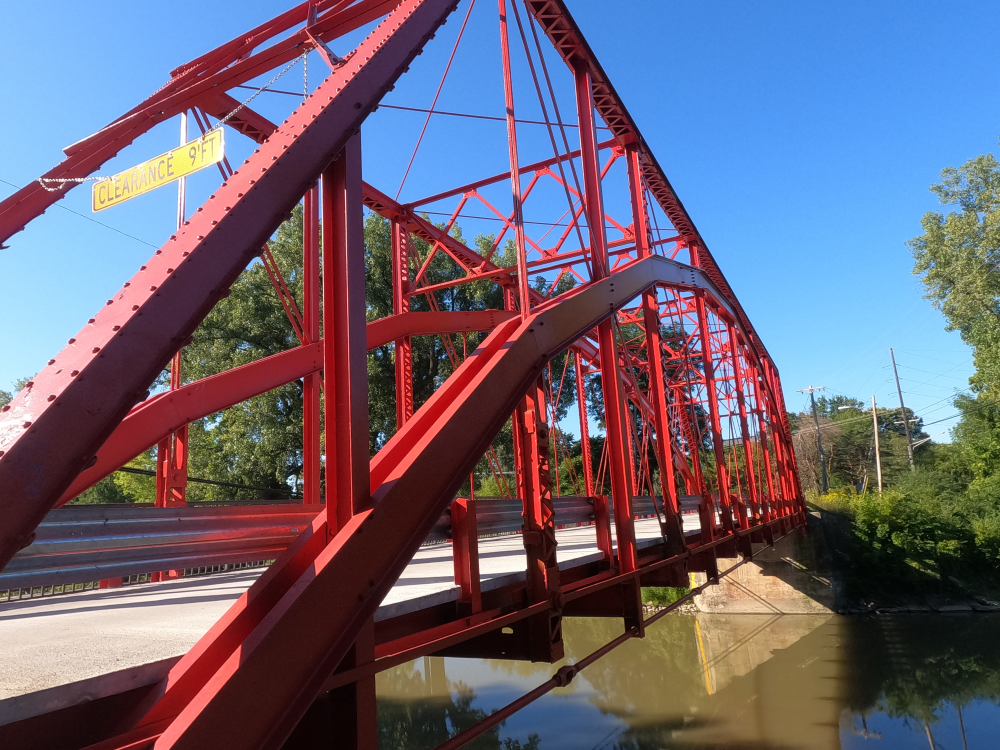

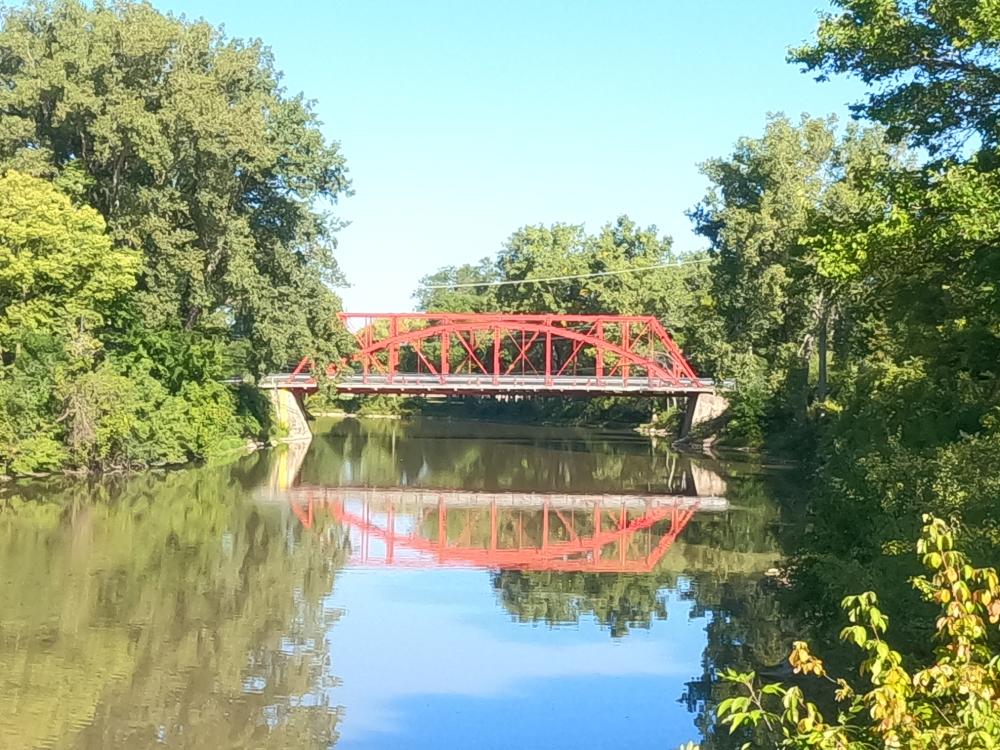

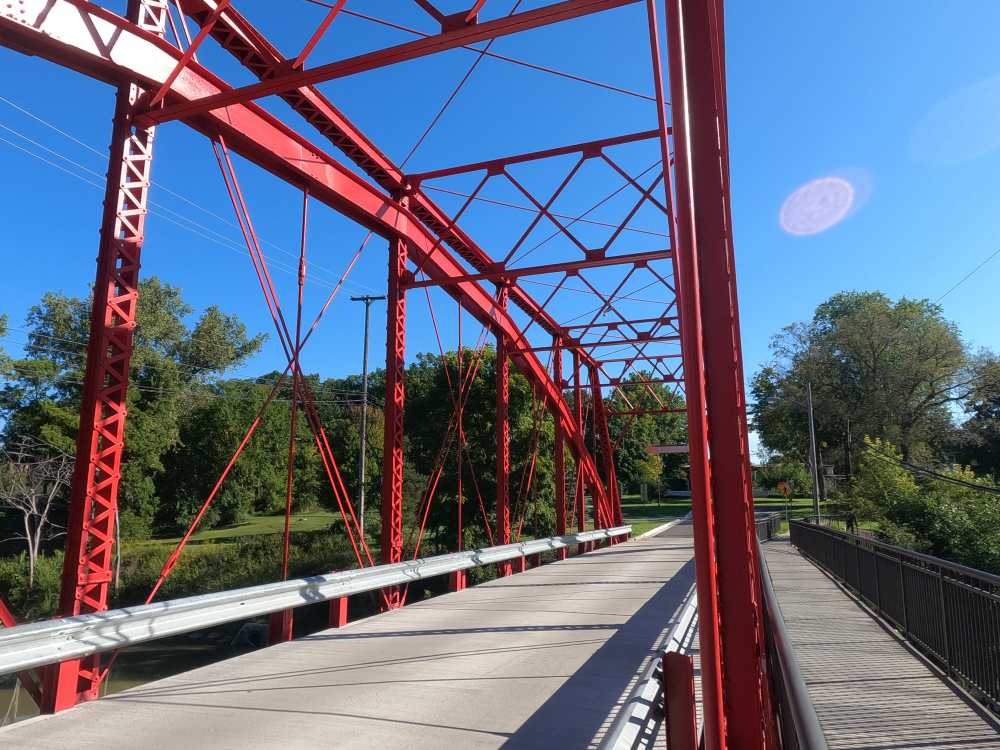

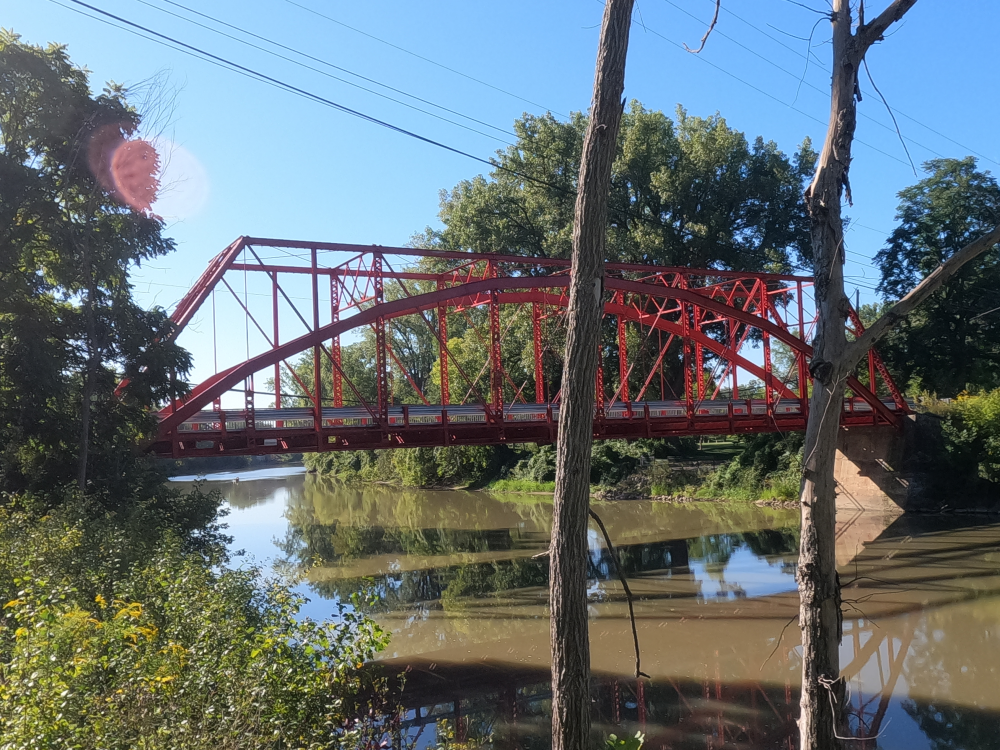

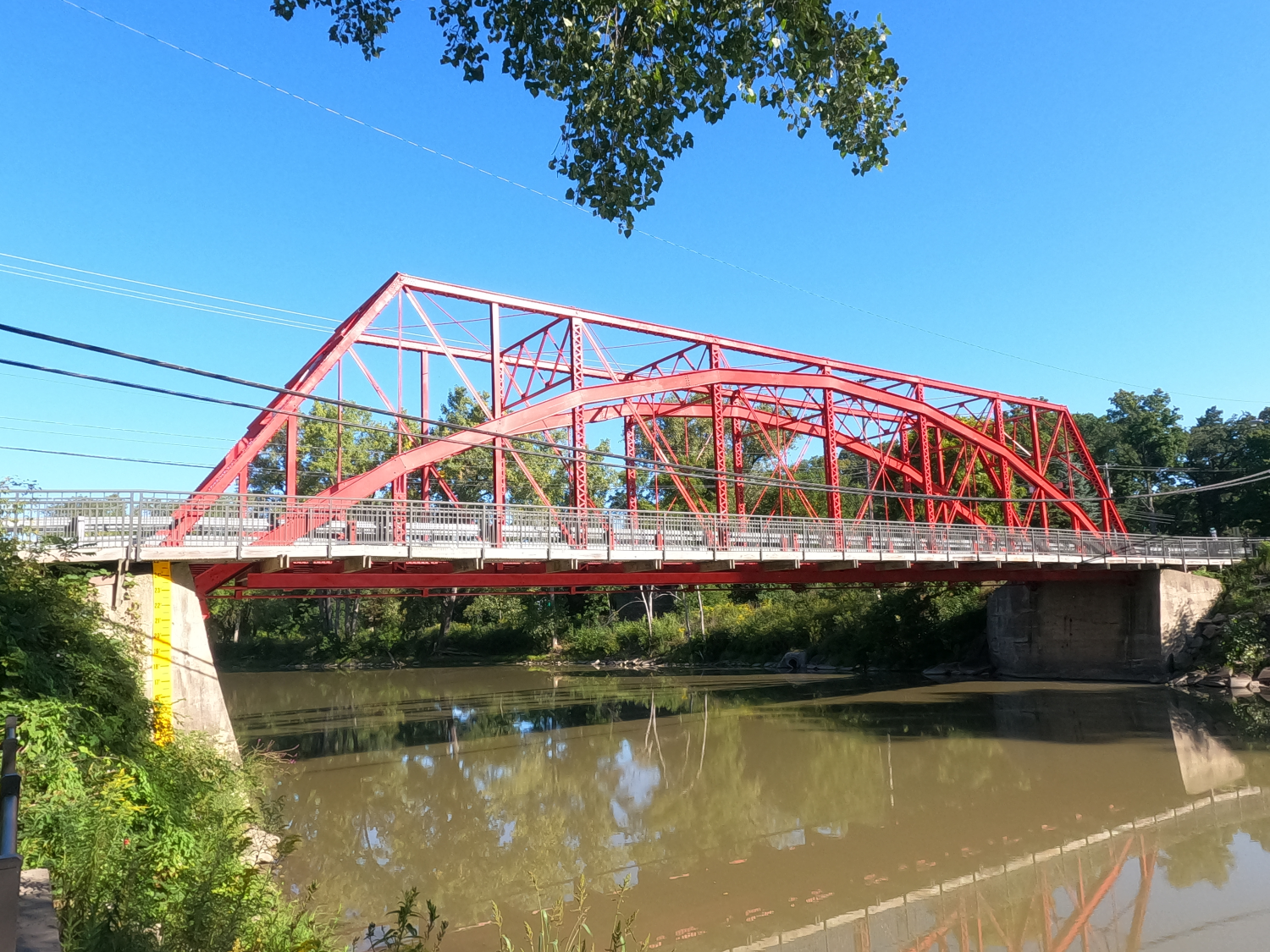

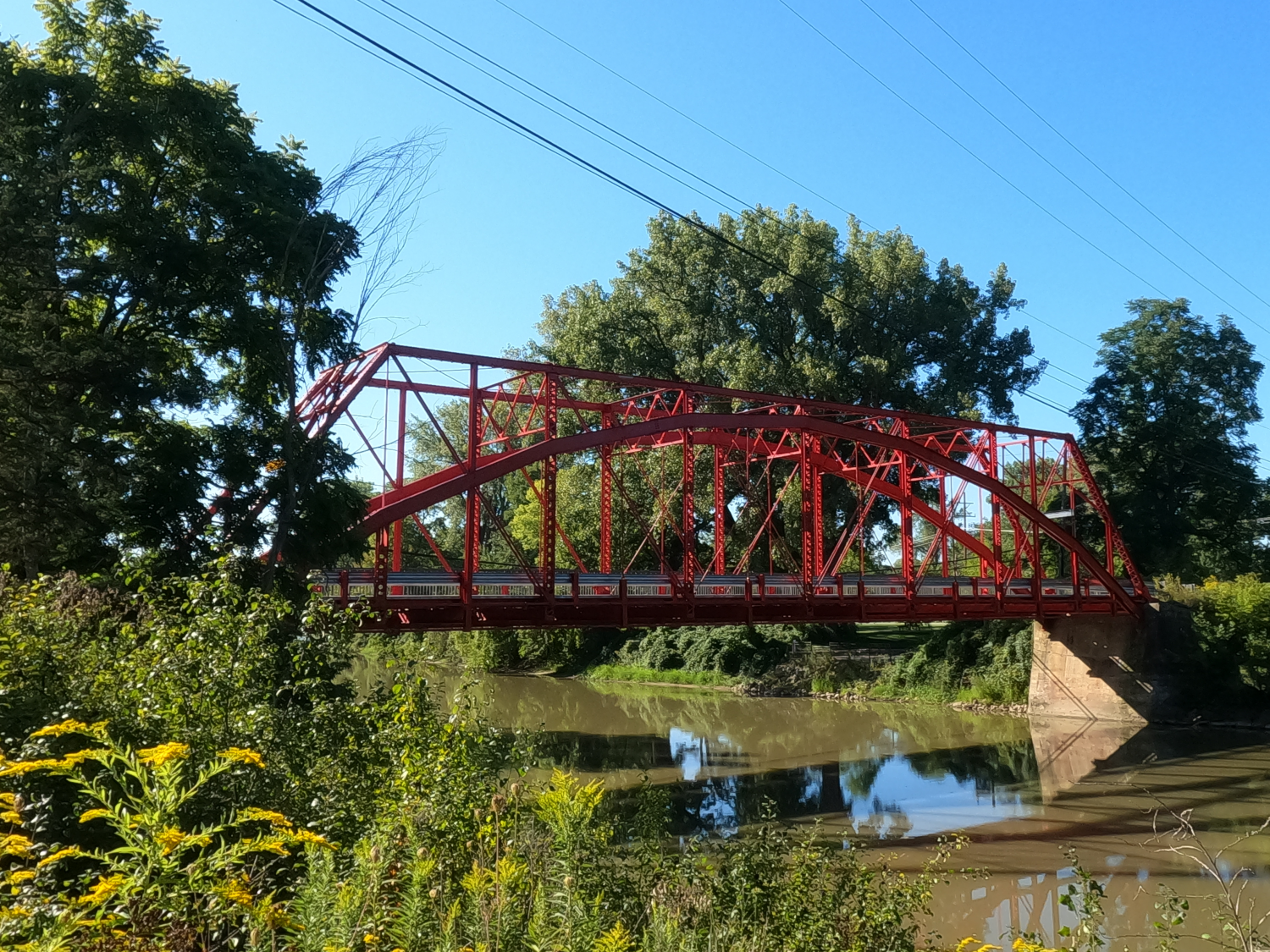

The original structure was a Pratt through-truss bridge. However, an independent structural arch was added in 1988 to help preserve the bridge. The arch is what is supporting the traffic loads, leaving the trusses as non-structural decorative elements. The bridge was painted its distinct red color in 2014.

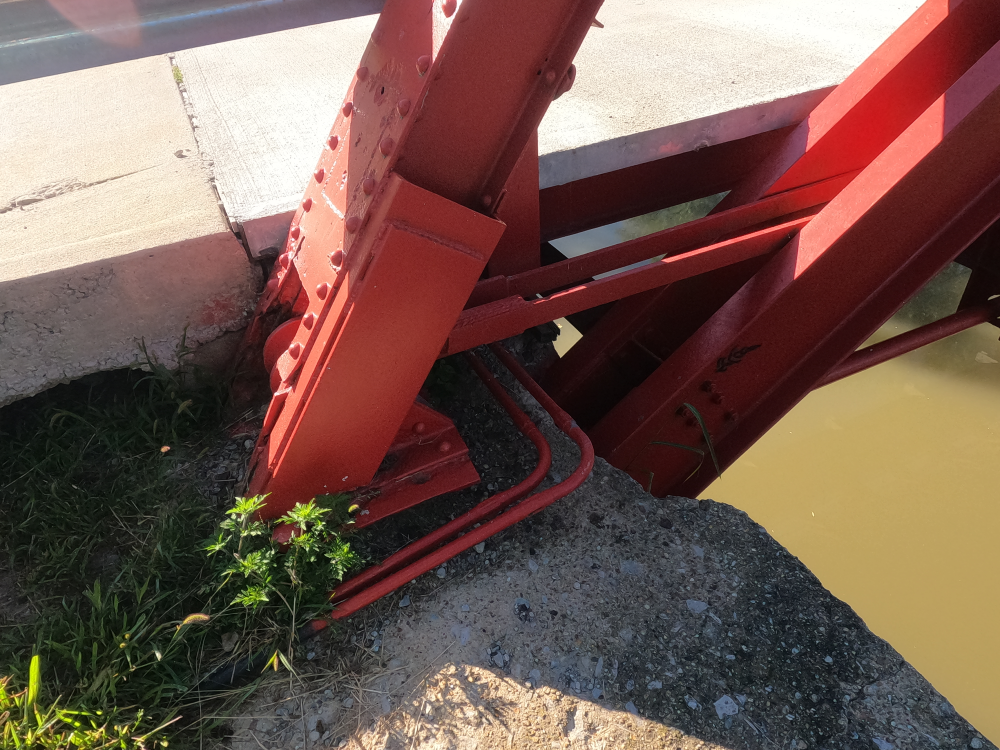

In the fall of 2018, the bridge was closed after an overweight vehicle damaged the bridge. The bearings, tie rods, and other steel members needed to be repaired, but the bridge was able to be reopened in June of 2019. However, a temporary traffic order was placed on the newly opened bridge making it one-way. The significantly reduced the traffic volumes on the bridge.

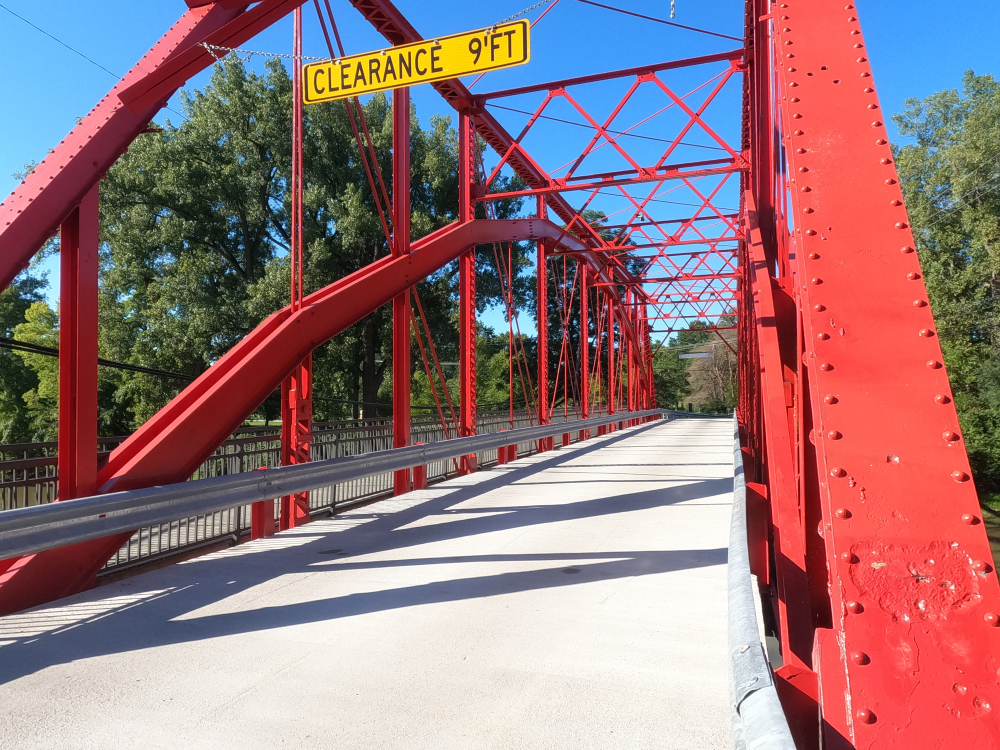

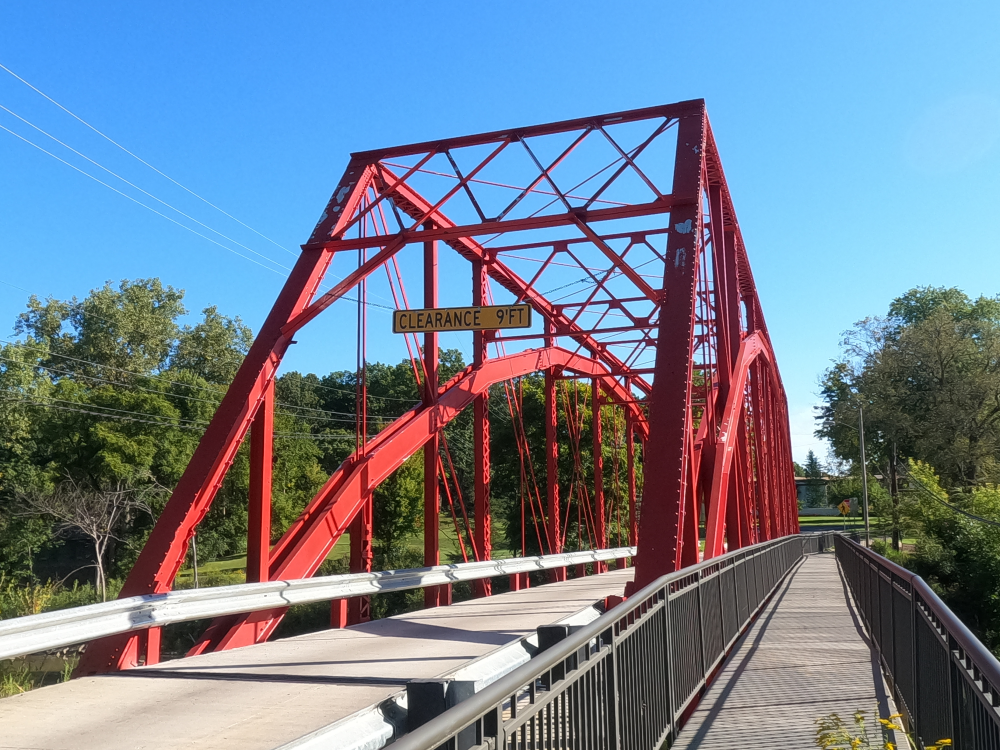

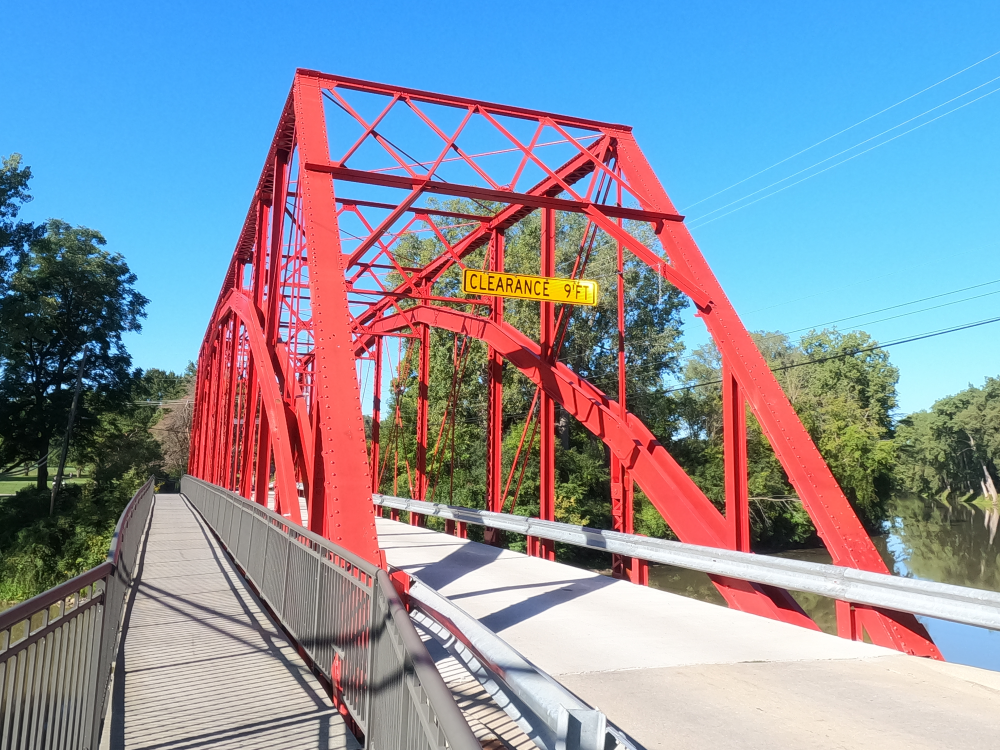

It was again damaged by an overweight vehicle in October of 2021 and was reopened to eastbound traffic on July 28, 2023. During these repairs, a guardrail lane was added at the approach. The system does not narrow the roadway but instead incorporates a slight angle that prevents long commercial vehicles or vehicles pulling trailers from accessing the bridge. In addition, the deck and some of the structural members were replaced, and the bridge railing was replaced.

It was ultimately decided to keep the bridge as one way, and a project was started to update the approach roadways to accommodate this. Construction was sone in the summer of 2025 and included relocating the curb and gutter.
